Creating the Walls

Create the walls of the building by extruding the floor plan.

In the Assembly Browser:

Duplicate Floor plan using the right-click context menu.
Rename the duplicate to Wall using right-click context menu.
Click Wall, and from the right-click context menu, click Extrude as Sheet Body.
On the pop-up dialog, specify a height of 3 m.

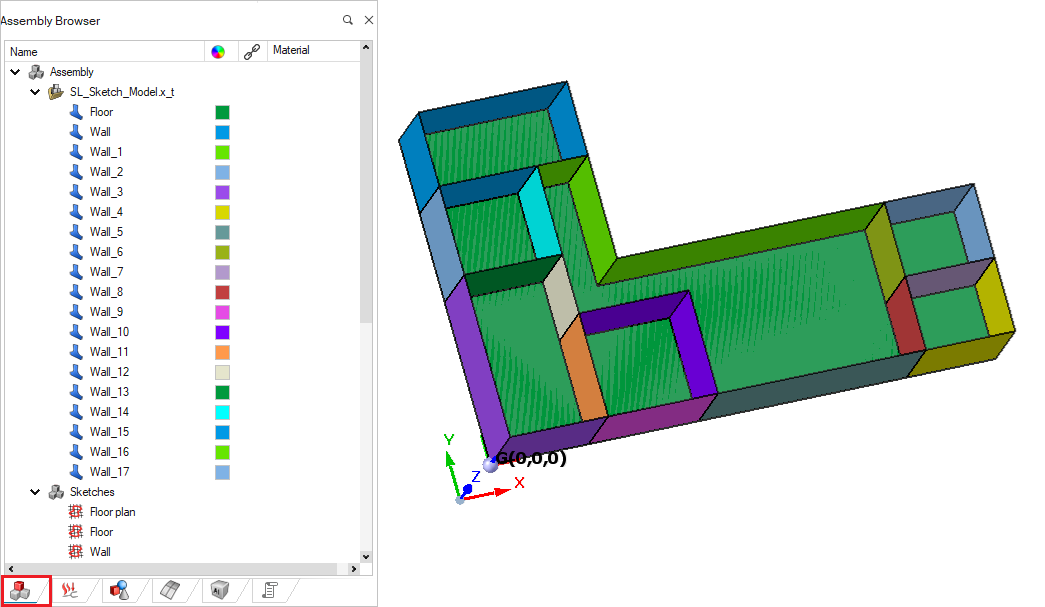

The result is the following:
