Step 5: Surface Mesh

  1. Go to Mesh > 2D Create > Mesh

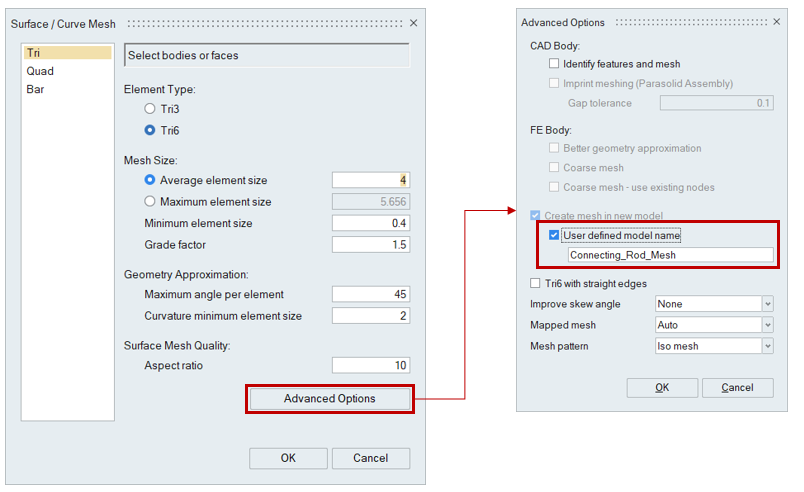

  2. Click on Advanced Options > Turn ON User defined model name and give "Connecting_Rod_Mesh" in line edit, then click OK.
  3. Select Connecting Rod Body in graphic area and click OK.

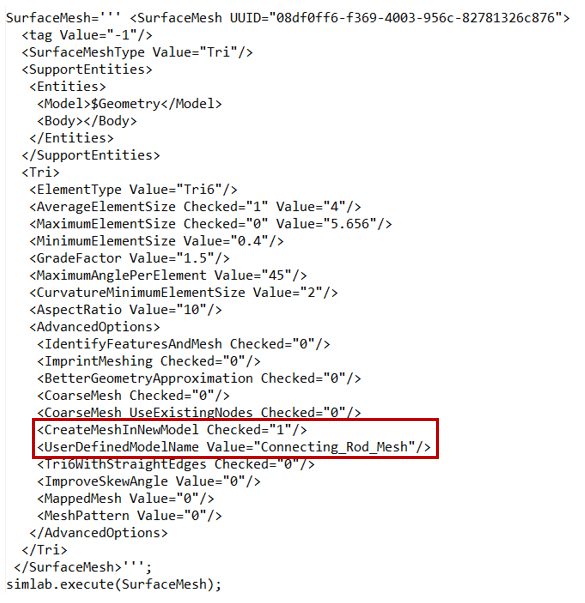

  4. The operation is recorded as below.
