Step 3: Feature Identifications in CAD

  1. Select Connecting Rod Body in the graphic area.

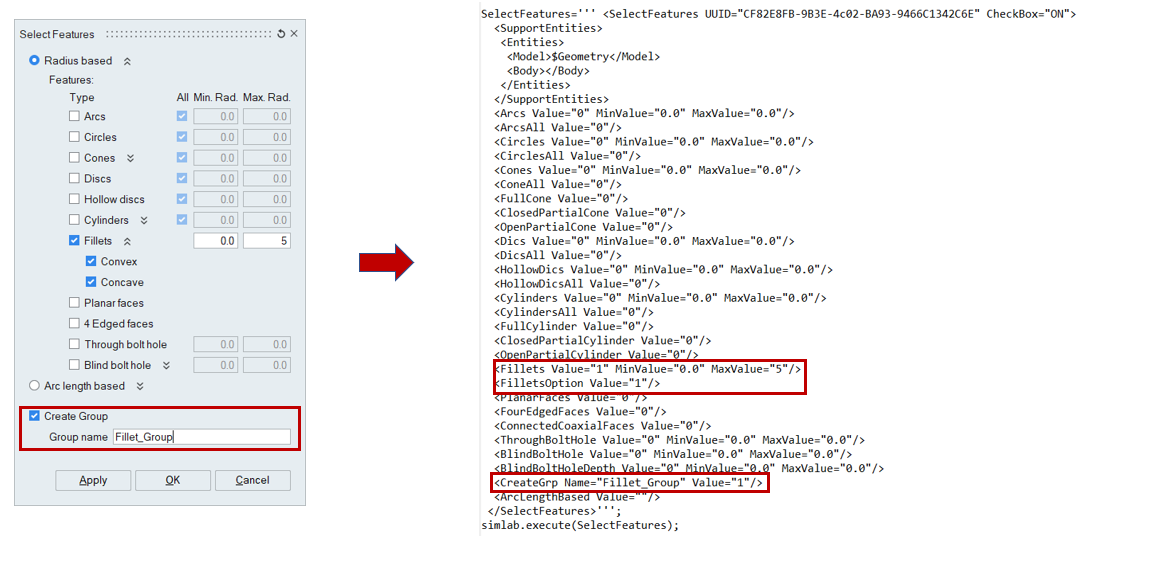

  2. Right click and choose Select Features.
  3. Turn ON the Fillets toggle and enter minimum radius as 0 and maximum radius as 5 as show below. Also, turn on the create group toggle and name the group as "Fillet_Group".
  4. Click Ok to identify the faces. The command is recorded as below:
