Step 4: Create Mesh Controls

Create Body Mesh Controls

  1. Select the Connecting Rod body in the graphic area.
  2. Go to Mesh > 2D Create > Mesh Controls.
  3. Select body mesh control and specify the Average element size as 4mm and click OK.

Create Fillet Mesh Controls

  1. Go to Mesh > 2D Create > Mesh Controls.

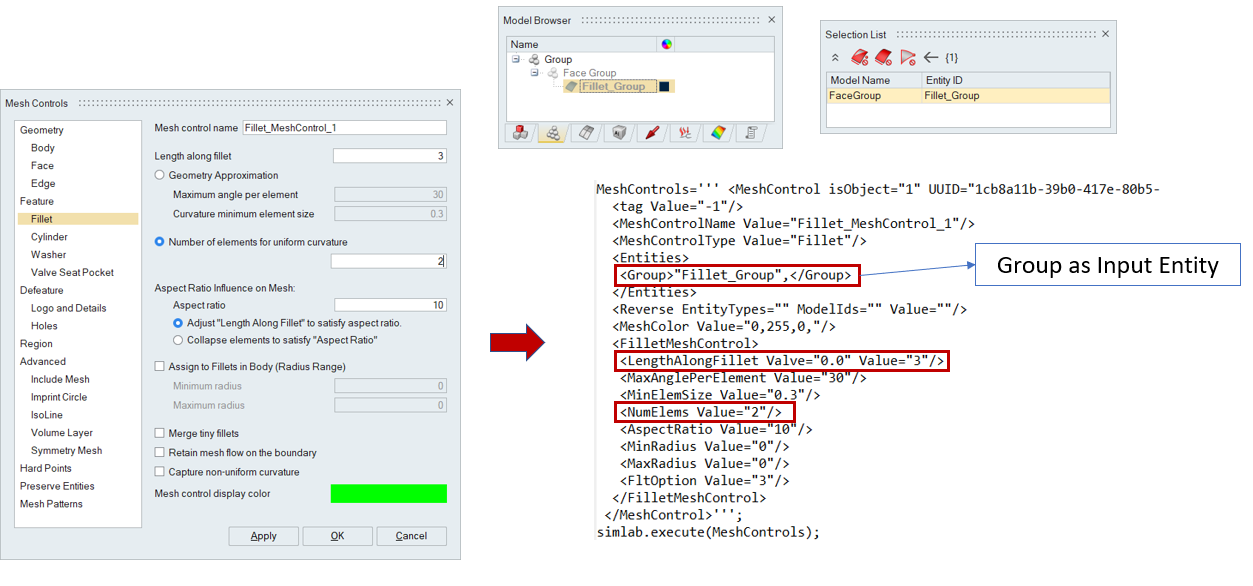

  2. Select Fillet option and enter the parameters from the below picture.
  3. Then, select the Fillet_Group from group browser and click OK.
