Create Seam Weld End Cap
Dialog Box
This tool is used to create end cap for the seam weld by creating connection between seam weld end and part be connected. End cap has to be created after connecting seam weld with bodies.
- Seam Weld Disc Face: User can select seam weld end disc face as seam weld disc face.
- Cap End Face: User can select the faces from body on which end cap is going to be connected.
- Mesh Size: Mesh size required in seam weld end cap and cap connecting body.
Example:

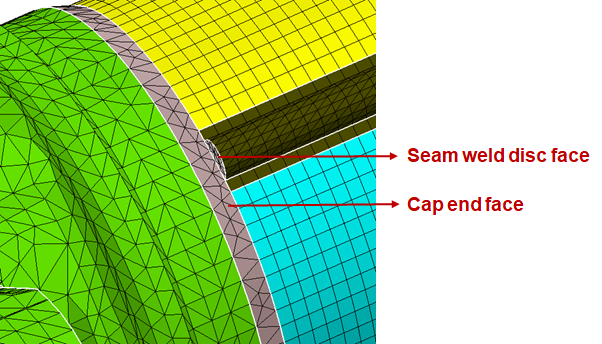

Input

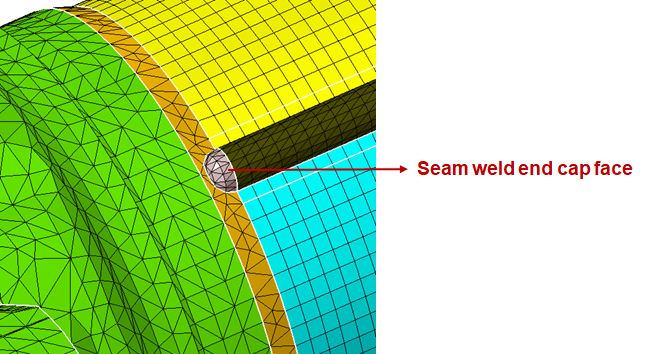

Output
