Connect T-Junction Beads
Dialog Box
This tool is used to connect the seam weld bead and regular(circular) weld which are meeting at one point. This connection between beads should be done before connecting the weld beads with body parts.
- Seam Bead
- Disc Face: User can select seam weld end face as disc face.
- Arc Edge: User can select the curve edge in the seam weld disc face as arc edge.
- Bounday Offset Edges: User can select the end edges of boundary offset faces from seam weld bead as boundary offset edges.
- Circular Bead
- 4-Sided Face: User can select the weld face from regular(circular) weld bead as 4-side face.
- Boundary Offset Face: User can select the offset face below the weld face from regular(circular) weld bead as boundary offset face.
- Mesh Size: Mesh size required in T-junction region.
Example:

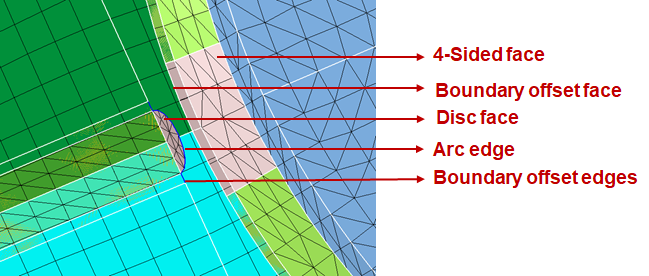

Input
Output
