Create Groove Weld
Dialog Box
This tool is used to create V-Groove shaped weld between two parts with connection.
- Root Edges: User can select toe side 1 root edges.
- Toe Side 1 Faces: User has to select the faces connected to root edges as toe side 1 faces. Toe side 1 faces can be selected from more than one body, but those faces need to have shared connectivity between them.
- Toe Side 2 Faces: User has to select the faces which are not connected to root edges as toe side 2 faces. Toe side 2 faces should be selected from one body.
- Mesh Size: Mesh size required in groove weld body and toe side 2 body.
- Root Edge Gap Tolerance: This is gap between root edges and toe side 2 faces. It is the gap allowed to move the root edges to toe side 2 faces.
Example:

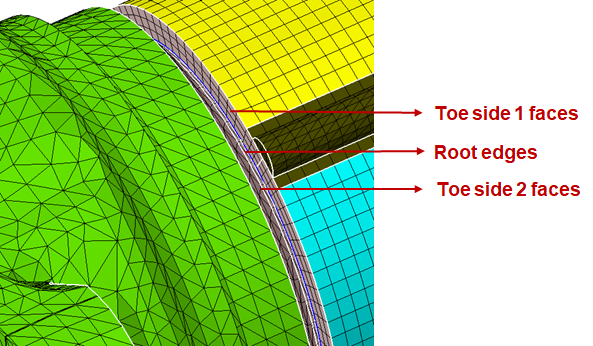

Input

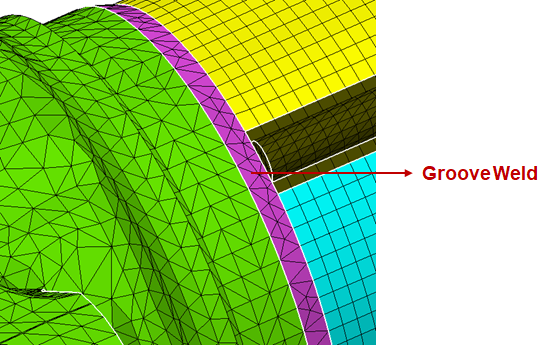

Output
