Create Plug Weld

Advanced > Weld > Without Heat Zone > Create Plug

Dialog Box

This tool is used to create cylindrical plug between two tube shaped parts without connection.

• Top Circle Edges: User can select tube's top outer circular edges.
• Bottom Faces: User can select the faces on which plug is going to be connected.
• Axial Number of Layers: Number of element layers required in plug's axial direction.
• Create Boundary Offset at Bottom Edges: This will create boundary offset faces for the given offset distance with required element layers.

Example:

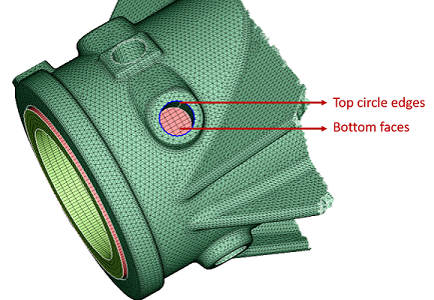

Input

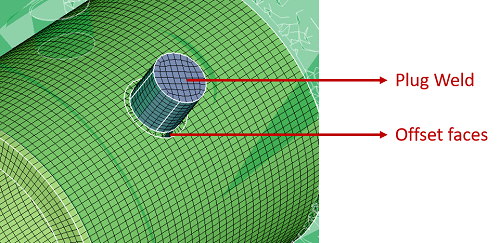

Output
