Options

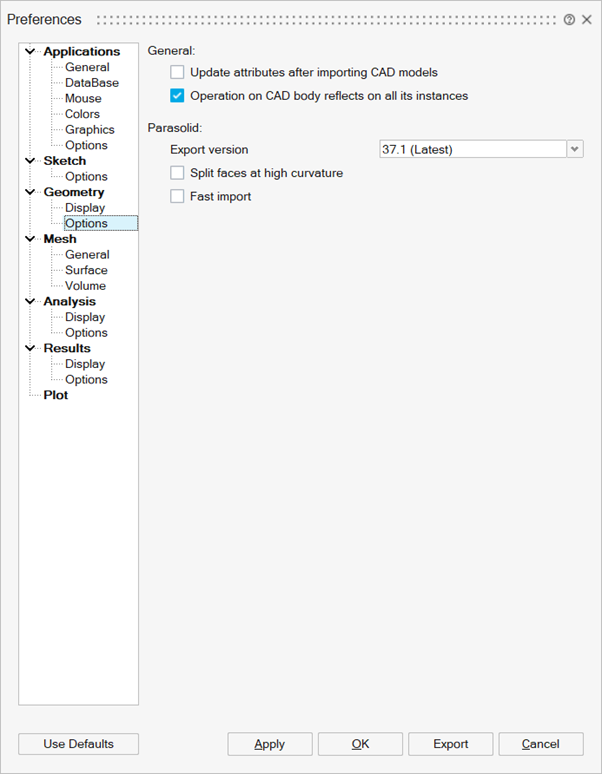

File > Preferences > Geometry > Options

General

Update attributes after importing CAD models:

This option automatically updates the attribute (Inspect | Attribute | Update) on importing the CAD model through File | Import | CAD or File | Import | CAD: Through Translation.

Operation on CAD body reflects on all its instances:On enabling this toggle, editing operation performed on CAD (Parasolid) body will reflect on all its instances. For example, defeaturing performed on one of the CAD (Parasolid) body will reflect on all of its instances.

Parasolid

Export version:

The export version for Parasolid files can be selected using this option. The latest version is the default option.

Split faces at high curvature

While importing Parasolid models, faces can be split along the high curvature by enabling the toggle Split faces at high curvature.

Fast import

Parasolid files can be imported faster by enabling the toggle Fast import. Here the face and edge tessellation may not match.
