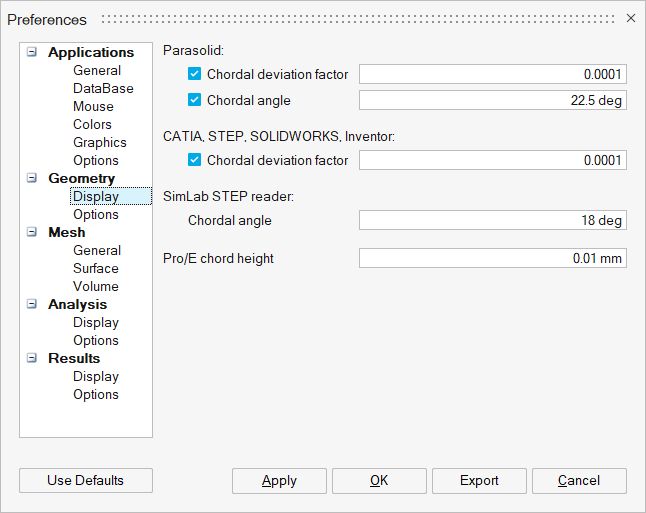

This is used to improve the Display Quality of
CAD models during import. CAD Display Quality values can be varied as preferred, to
achieve the desired output. Change the desired quality value and then import the model
into SimLab to see the difference in display quality. The default values for respective
CAD model types are as follows.ParasolidDefault chordal deviation factor
is 0.0001 and chordal angle is 22.5.
CATIA, STEP, SOLIDWORKS,
InventorDefault chordal deviation factor is 0.0001.
SimLab STEP
readerDefault value for chordal angle is 18.00.
Pro/E chord
heightDefault value for chord height is 0.010.
