Edit Solution

Analysis > PE Loads > Edit Solution

Introduction

After to Edit the solution, it's possible:

  • to assign all the meshed bodies to the solution.
    The bodies to be assigned to the solution:
    • should be meshed with surface mesh or volume mesh (limitation to be left)
      Warning: Before running the solving process, you will have to generate the volume mesh.
    • should belong to the same .gda model
  • possibly to modify the frequency definition i.e. the frequencies for which the computation will be done.
Warning: It is not possible to modify here the simulation type and the port type: the corresponding fields are grayed out. The simulation type and the port definition are only done during the creation of the Parasitics Extraction solution.
Note: The Parasitic Extraction solution is created before, to have more details about the creation of the solution Parasitic Extraction, please refer to Parasitics Extraction solution.

Steps

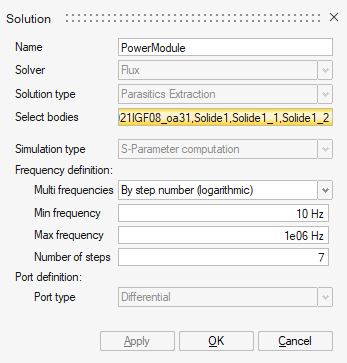

  1. Double-click on the Solution button in the Solution Browser
  2. Select all the meshed bodies:

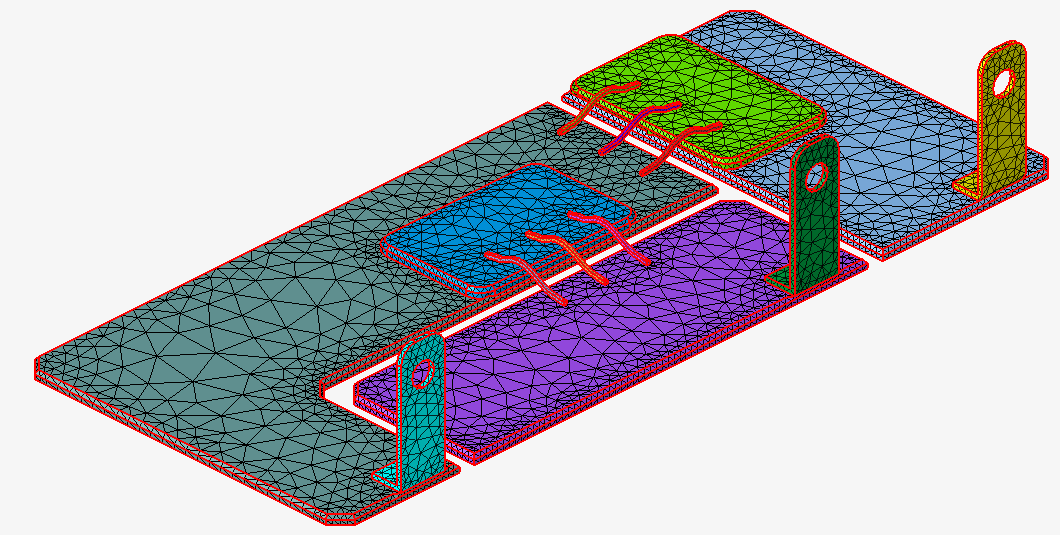

    The outlines of all the bodies are displayed in red. All the bodies are going to be assigned to the solution.

  3. Possibly modify the Frequency definition
  4. Click on the OK button
