Magnet
Introduction
The Magnet allows you:
- to define the magnetic orientation of a permanent magnet
Note: To complete the modeling of the magnet it is necessary
to assign a Permanent Magnet material on the same body on
which the Magnet is applied.

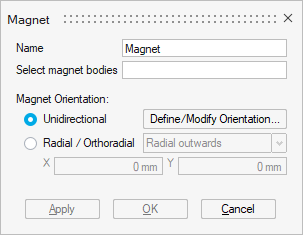

Dialog Box
- Select magnet bodies: Select one or several bodies to define as a magnet.
-
Magnet Orientation: two choices
-
Unidirectional: along a vector to define by clicking on Define/Modify Orientation
-
Radial / Orthoradial: Magnetic direction of the selected body either diverge/converge from the given point
4 types:
- Radial outwards
- Radial inwards
- Orthoradial clockwise
- Orthoradial anticlockwise
Orientation type Illustration Unidirectional
Radial
outwards inwards Orthoradial
clockwise anticlockwise
-
