PAM-CRASH Interface

New Features

PAM-CRASH Sets (Group keyword) Migrated to the New Infrastructure

This migration allows you to create and edit sets quickly and efficiently.

The Group keyword set can be directly created without needing to create ‘set of sets’ selecting entities.
Multiple Sub objects can be referred to the Group keyword with different types of entities.
Range selection without upper and lower bounds has been implemented for sets containing nodes, elements, and parts.
SEG and EDG are mapped to the Set Segment.

New Generic Impact Workflow

Use this tool to define impact points on any type of structural part, automatically position any type of impactor, and automatically export ready-to-run solver decks. For more details, see the Safety Tools release notes.

Enhancements

Penetration check with solver output functionality has been extended to implicit solver output, which uses the IRMV=-2 option in contact for adjusting local contact thickness. Support for reading the solver output of contact type 43 (edge-to-edge) has been added.
The new keyword Multi-Block Contact Input is now supported.

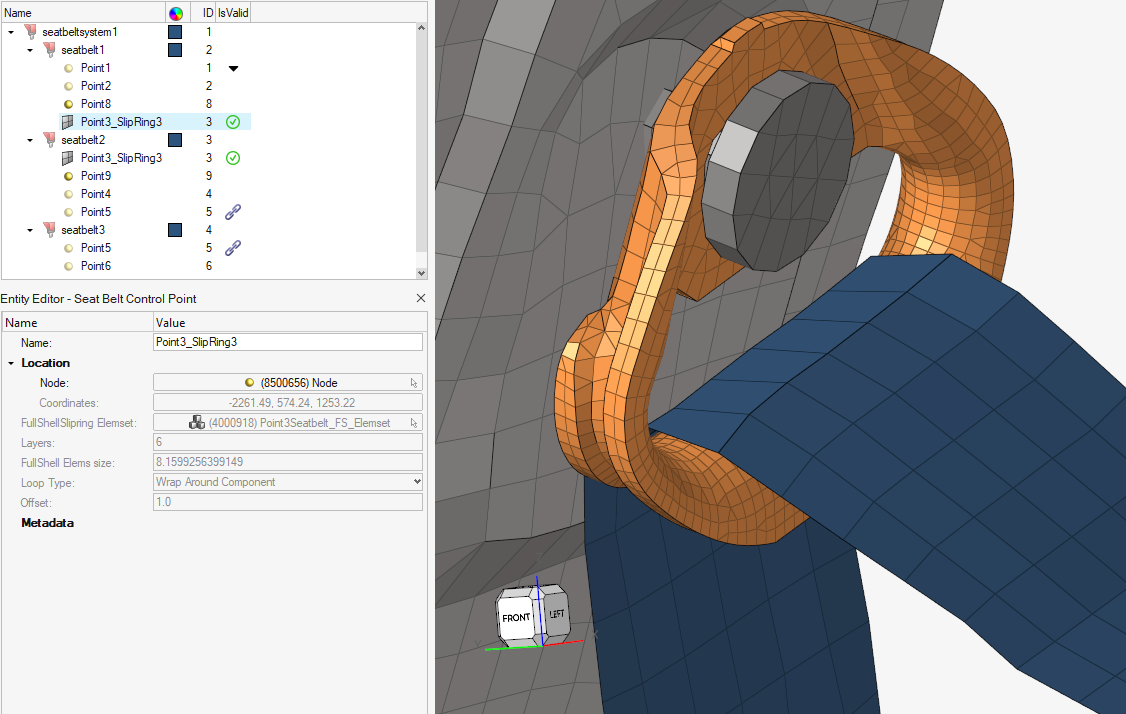

Seatbelt Tool: The Full-Mesh Slipring option, which is accessible from the Seatbelt Browser > Create context menu, has been enhanced to use an embedded simulation for robust, high-quality results.
Figure 1.

Resolved Issues

Modular parts MPART/ are now selectable in a penetration check embedded algorithm for checking penetrations and intersections.
Inconsistent extra space in GRP names.
Group keyword order is now maintained in the solver deck.
Previously, when importing RUPMO type 11 with a blank space, FILTER=CYCLE was automatically added. This has been corrected. The blank space is now preserved during import and remains blank upon export.
Export issue for MAT Type 143 has been corrected when the optional card ‘OSR and NDP’ is selected and FILTER, INTERP attributes are set to blank.
Issue with set loosing component selection upon importing an include file with $HMCOMP comment with same ID.
