Loading Materials from DataBase into Model

Select the material from the database and make it available by pulling into the model.

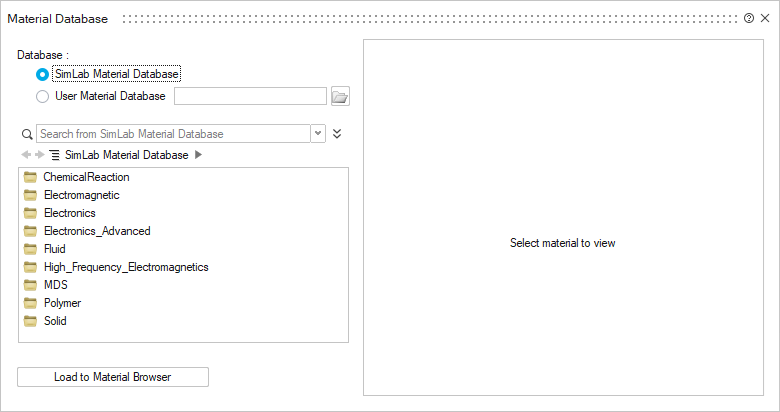

On the Analysis tab, in the Property group, click Material > Built-in DB icon.
From the list, select High_Frequency_Electromagnetics > Wireless.

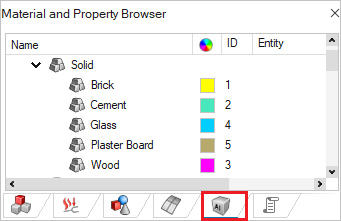

Load Brick to the Material Browser.
1. From the list, select Brick.
2. Click Load to Material Browser.
Load Glass to the Material Browser.
Load Wood to the Material Browser.
Load Cement to the Material Browser.
Load Plaster Board to the Material Browser.
