Deformation

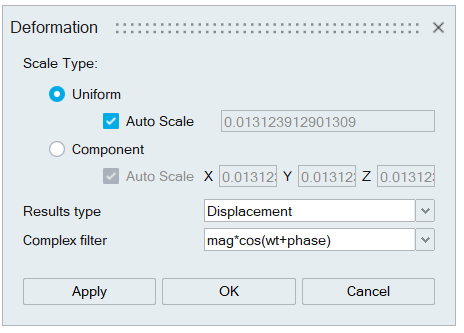

Dialog Box
This tool is used to modify the display of the deformed shape in the results model.
Scale type
Scale Factor is used to scale the deformation of the results model. Simlab has "Auto Scale" feature, which computes the best scale factor automatically to visualize the deformation. By disabling the “Auto Scale”, user can set the desired scale factor for the deformation.
Uniform scale type
Single scale factor will be used for X, Y, and Z deformation.
Component scale type
Separate scale factors will be used for X, Y, and Z deformation respectively.
Results type
This option is used to select the deformation component.
Complex filter
In modal animation mode, the available complex filters are:
- mag * cos (ωt- phase) - the response with varying angle or ωt (in degree).
- mag* cos (ωt + phase) - the response with varying angle or ωt (in degree).
