Hotspots

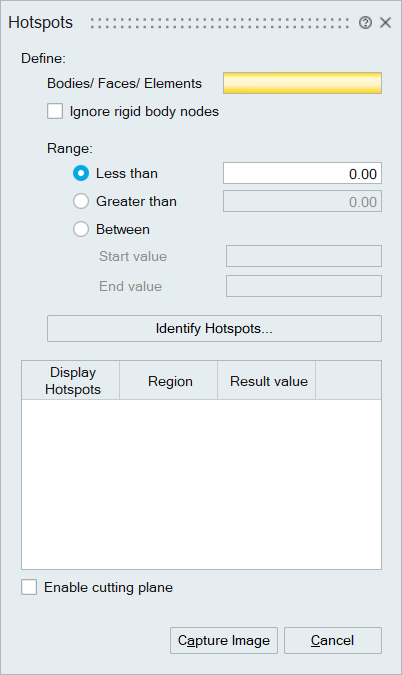

This tool is used to identify results regions for given threshold limit (above, below, within range) by specifying which entity (i,e. bodies, faces, and elements) needs to be identified. The results region will be found for the entire model if no input is provided.
The results component currently displayed will be considered to identify the results region.

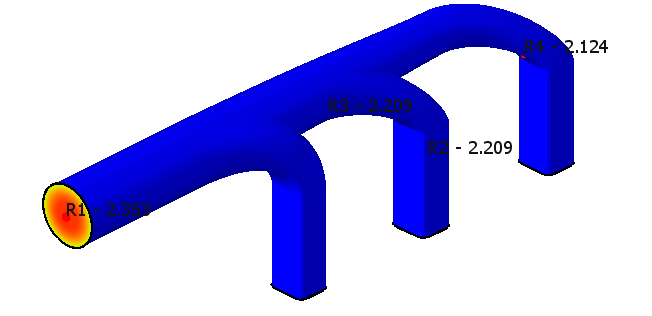

Each region can be visualized in cut section front side view by clicking on the particular region’s radio button.
Ignore rigid body nodes
This option is used for skipping regions connected to rigid body nodes.
Enable cutting plane
This option is used for applying cut section to individual regions.
Capture Image
For all the identified regions, each region can be captured in cut section front side view and stored as image file.
