Notes

Post > Notes

Description 

Use the Notes tool to add annotations in the modeling window.
  1. From the Post ribbon, click the Notes tool.

  2. Select the type of note.
    Static
    Notes that are static will not move if you manipulate the model.
    This is useful for adding titles while capturing images or recording.
    Anchored
    Anchor a note to any object or spatial position. The note will move as you manipulate model and will be anchored in the defined location.
    This is useful if notes are created for specific part or surfaces.
  3. Select a location in the modeling window to place the note.

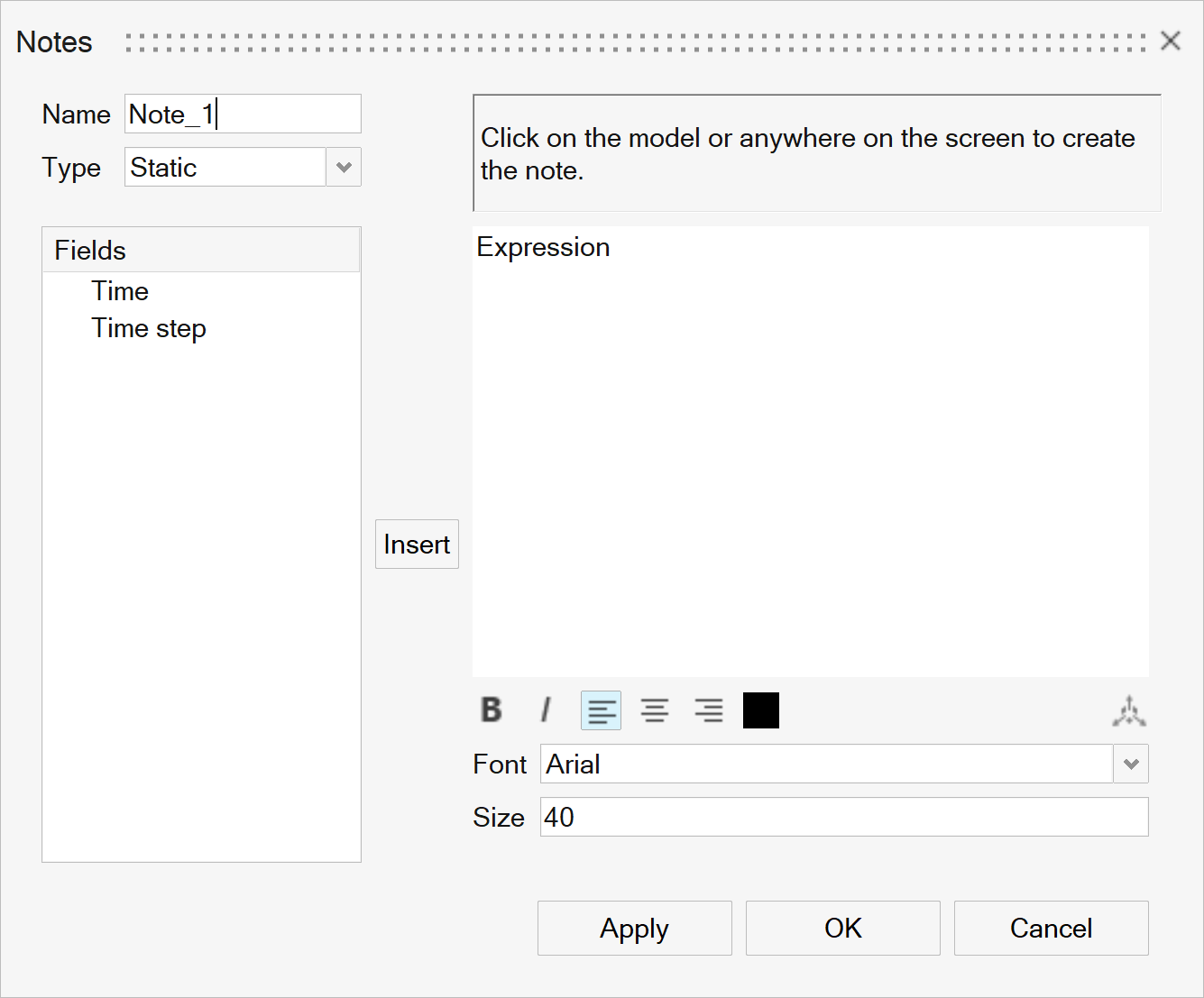

  4. Define note text and formatting in the dialog and/or update the note's positioning.
    1. Type the display text in the box on the right.
    2. Select an available field from list on the left, then click Insert Field to add it to the note. For the time field, define the precision and format.
    3. Update text formatting such as fonts, size, color, and alignment.
    4. If needed, click to reposition a note or anchor point using the Move tool.

Use the Results Browser to enable or disable the visibility of notes and edit existing notes.
