Save Display

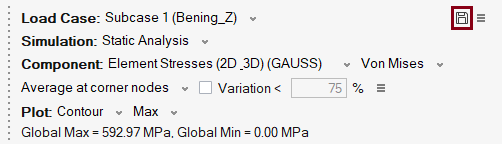

The Save display option is used to save the results display settings. This option is used to visualize multiple displays of contour, vector and Isoline.

Saved displays are listed under the respective solution/load case.

This feature enables to view multiple plots displays by activating the saved displays through the solution browser. The supported saved displays include contour, vector and isoline plots.

These saved displays are organized under the selected solution/load case within the displayed results of the solution. If the current displayed results solution is modified, the saved displays will be deactivated.

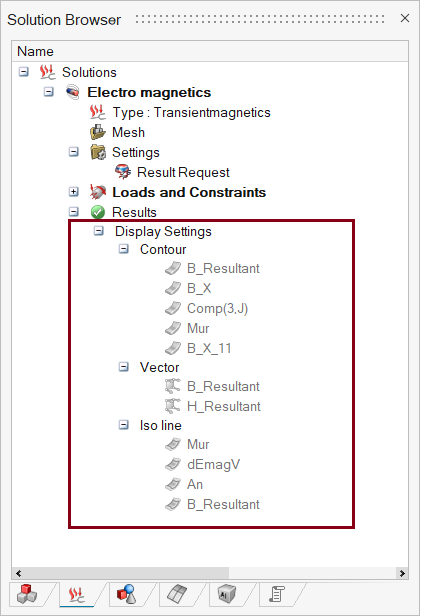

Save display in Solution Browser

The following options are supported for the display plots.

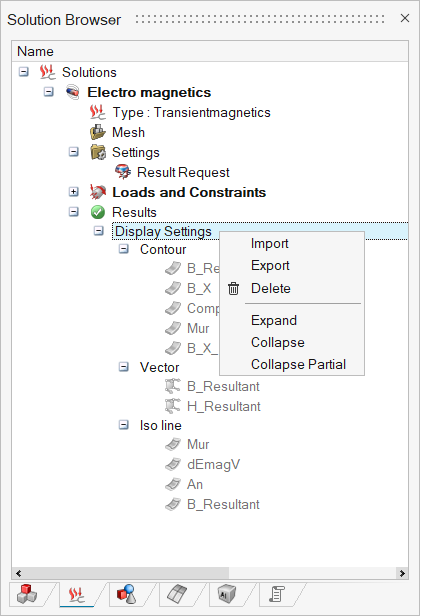

The following options are supported for saving display settings.
  1. Import
  2. Export
  3. Delete

Import

This option is used to import the saved displays into SimLab from the xml file.

Export

This option is used to export the saved displays as a xml file.

Delete

This option is used to delete all the saved displays.

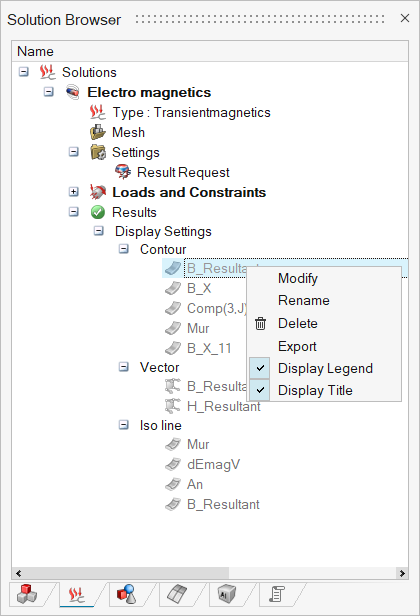

Modify support for the saved display

These are following operations supported to modify the created scenes.
  1. Modify
  2. Rename
  3. Delete
  4. Export
  5. Display Legend
  6. Display Title

Modify

This option is used to modify the existing display settings.

Rename

It allows to rename the saved display.

Delete

This option is used to delete the selected display.

Export

This option is used to export the selected display as a xml file.

Display Legend

This option controls the legend display of each saved display.

Display Title

This option controls the legend title of each saved display.

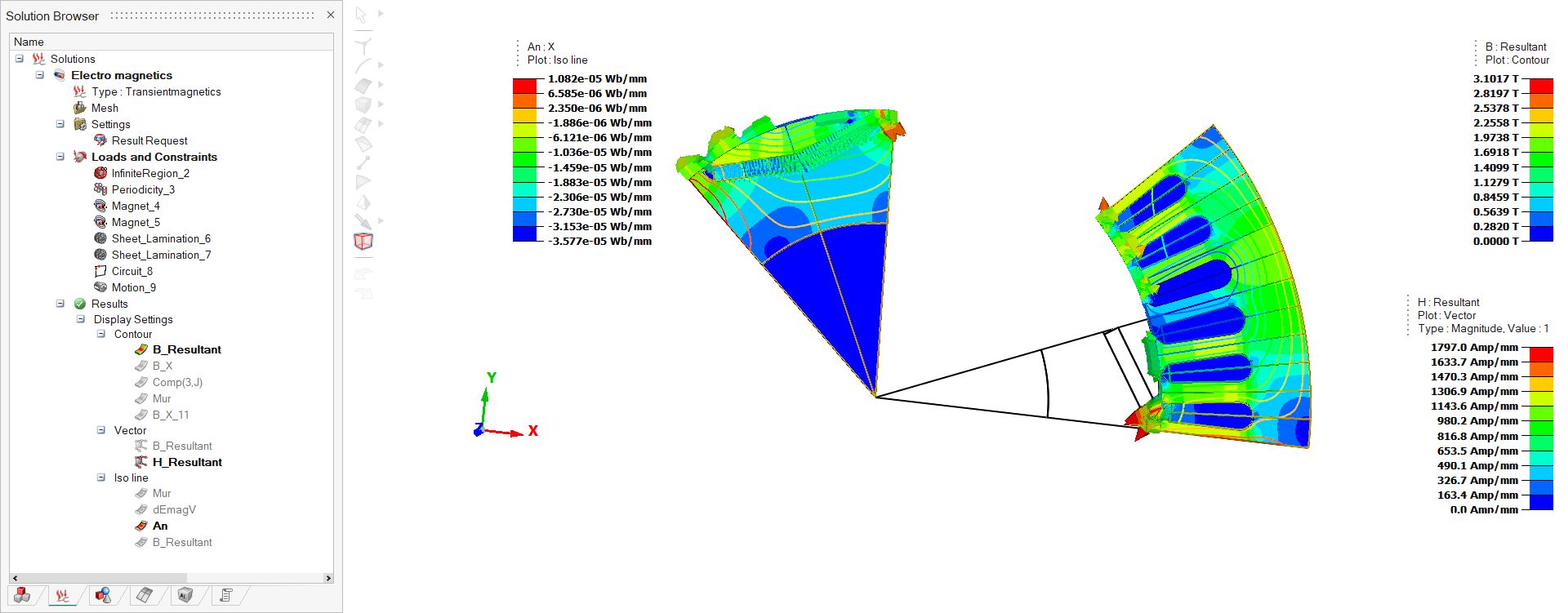

Below is the example of displaying Contour + Vector + Isoline at a time.

This feature is also supported by the following results operations,
  1. Animation – Linear, Transient and Modal
  2. Cutting Plane
  3. Deformation
