Remove Displacement

Results > Tools > Remove Displacement

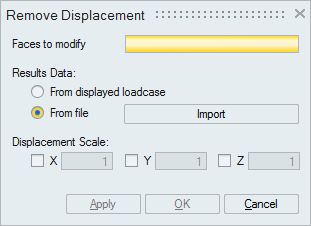

This tool is used to remove the displacement (obtained from the result) from the nodal coordinates of the selected faces. The required inputs are,

  1. Faces for which the displacement has to be removed.
  2. Source of the displacement data (From displayed loadcase or From file).
  3. Direction and the corresponding scale factor.

There is option (From displayed loadcase or From file) to use the results data either from the data already available on the screen or it can be imported from an external file. The external results file should have the node ID, followed by the displacement in X, Y and Z direction in each line as shown below.

Format 1: Separated by comma ( , )

1933, -0.088323, -0.094775, 0.088016

1935,-0.117876,-0.128268,0.095095

Format 2: Separated by space

1938-0.143865-0.1583850.091521

1939-0.143870-0.1583950.091530,

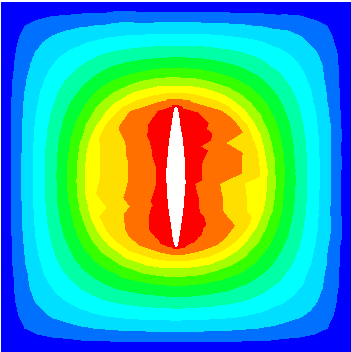

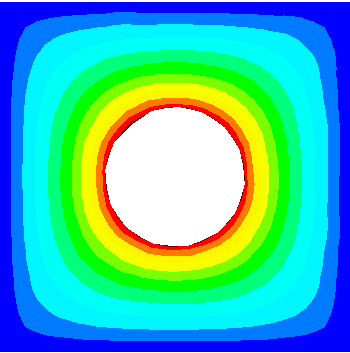

Before displacement removal After displacement removal
