Edit Solution
Introduction
After to Edit the solution, all meshed bodies can be assign to the solution.
The bodies to be assigned to the solution:
- should be meshed with surface mesh or volume mesh (limitation to be left)
- should belong to the same .gda model
Note: The Magnetic AC 3D solution is created before, to have
more details about the creation of the solution Magnetic AC 3D, please refer to
Magnetic AC solution.

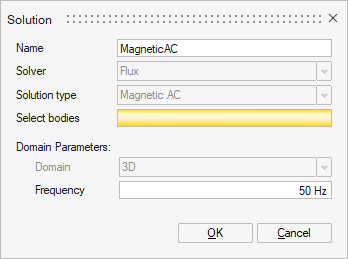

Dialog Box
In the Select bodies field, select all the meshed bodies.
