Edit Solution

Analysis > Magnetostatic Integral Loads > Edit Solution

Introduction

After editing the solution, all meshed bodies can be assigned to the solution.

The bodies to be assigned to the solution:
  • should be meshed with surface mesh or volume mesh (limitation to be left)
  • should belong to the same .gda model
Note: The Magnetostatic Integral solution is created before, to have more details about the creation of the solution, please refer to Magnetostatic Integral solution.

The Edit Solution can also be used at the end of the physical definition if you defined a Motion in your solution. This will allow you to define the Motion parameters values for the solving. Please check the documentation Motion for more details.

Steps

  1. Double click on the Solution in the Solution Browser

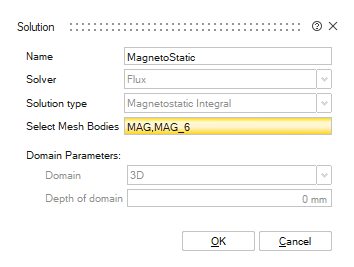

  2. Select all the bodies:

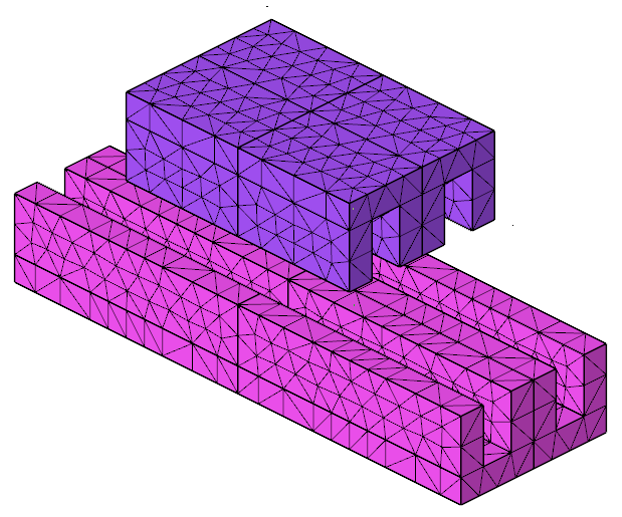

    The outlines of all the bodies are displayed in red.

  3. Click on the OK button.


All the bodies are now assigned to the solution.

To the left of the graphic window, in the Solution Browser (2nd tab), there is no more empty set Ø next to Mesh:

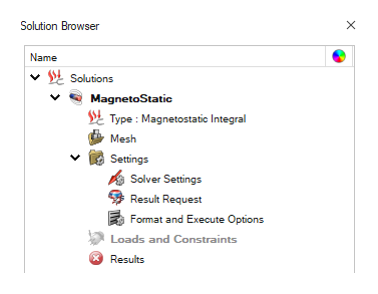

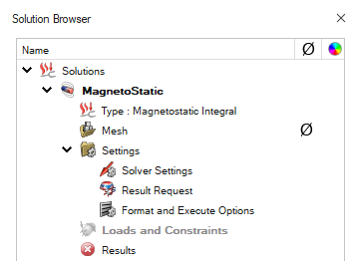

Before assigning bodies to the Solution After assigning bodies to the Solution
