Sketch

Introduction

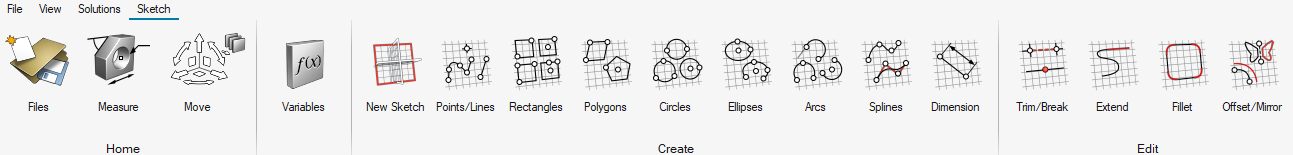

Click on the Sketch ribbon. The Sketch ribbon allows the user to create a parametric sketch from inside SIMLAB itself.

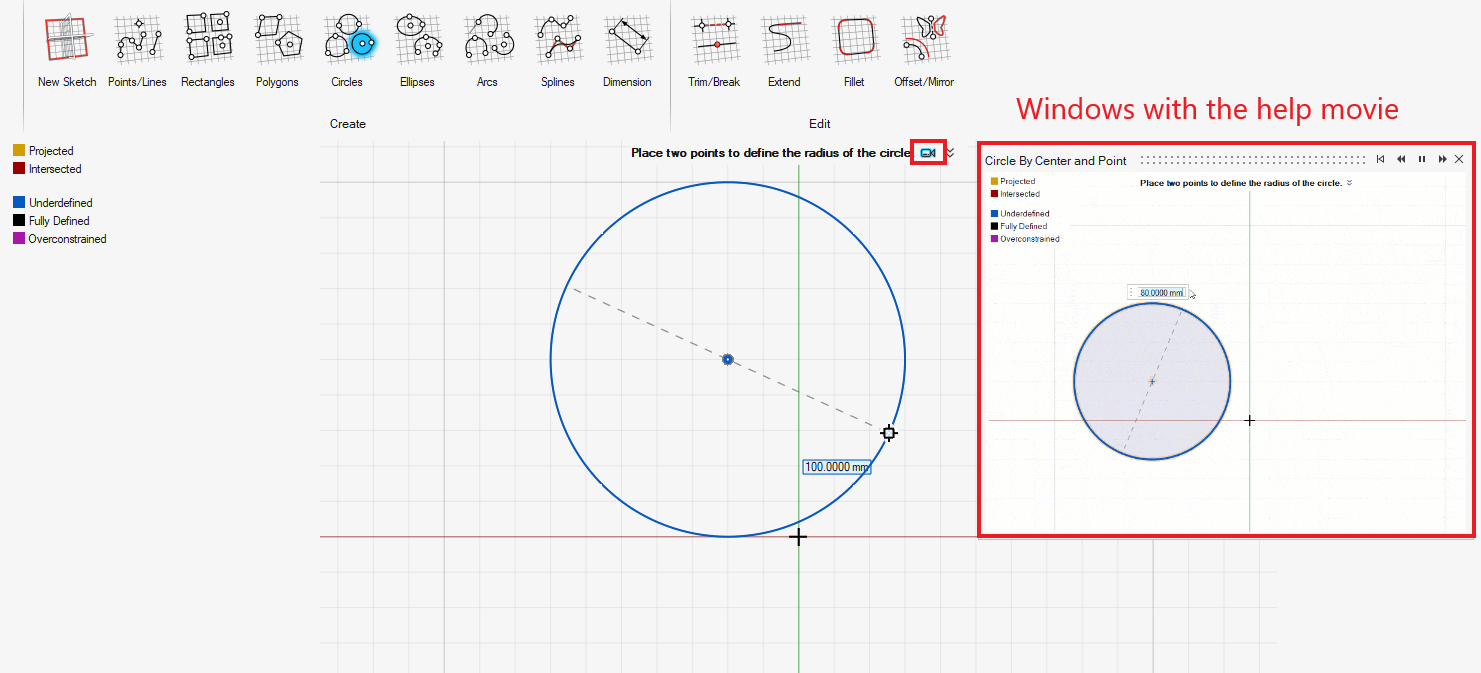

For help regarding the sketcher functionalities, there is a video and additional information that is provided when the user clicks on any functions for example: click on the icon to display the window with the movie.
