Results

Introduction

The following possibilities exist for postprocessing of results:
  • In SimLab
    • Node Path
    • Iso Surface
    • XY Plot
  • In the Flux environment by exporting to the solver and using all the functionalities available in the legacy Flux interface.

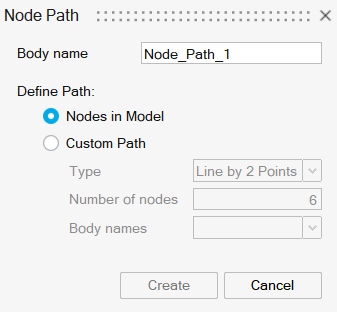

Node Path

Results > Node Path

Node Path allows to create the user defined paths and visualize the contour and vectors on the defined paths.

For more details about the node path, refer Node Path.

Iso Surface

Results > Iso Surface

The Iso Surface menu allows you to display for example the locations where B is greater or lower than a certain value, it allows to display the hot or cold spots.

Note: For more details consult Iso Surface.

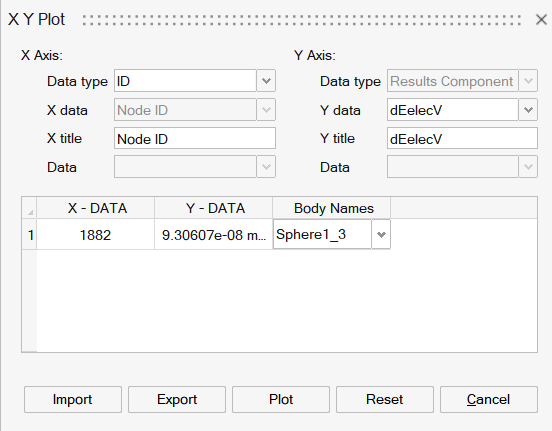

XY Plot

Results > XY Plot

The XY Plot allows the user to do point computations.

Note: For more details consult XY Plot.

Postprocess in Flux

To access to Flux Postprocessing, in the Model Browser in the Assembly Tab, right click in Results and choose View in Flux.

Note: The project *.FLU is stored in the selected working directory.

Additionally to the project *.FLU other files are stored to be able to reproduce the full operations done (*.bdf, *.h3d, *.py) and log files to track a potential problem (*.log, *.report).
