Create LED

Advanced > Trials > Create LED

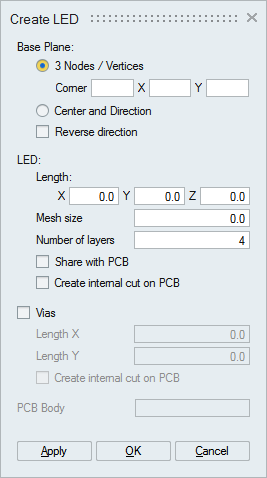

Dialog Box

This option is used to create a simplified LED (slug and die for the given dimensions) and vias surrounding the LED on PCB.

Base Plane
  • 3 Nodes / Vertices: A finite plane is defined using the input points (Corner, Point on X and Point on Y). The centroid of this finite plane is taken as the centroid for the LED base.
  • Center and Direction: Base plane can also be defined using the LED base center and directions.

Share with PCB

Slug base face is shared with the PCB body.

Create internal cut

Options used to create internal cuts on PCB along the boundary of the LED and/or Vias.

Example

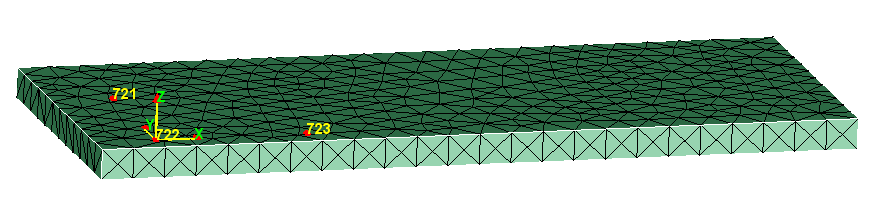

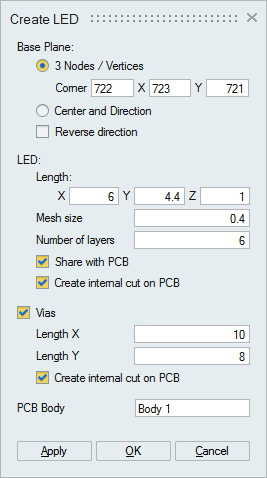

Input

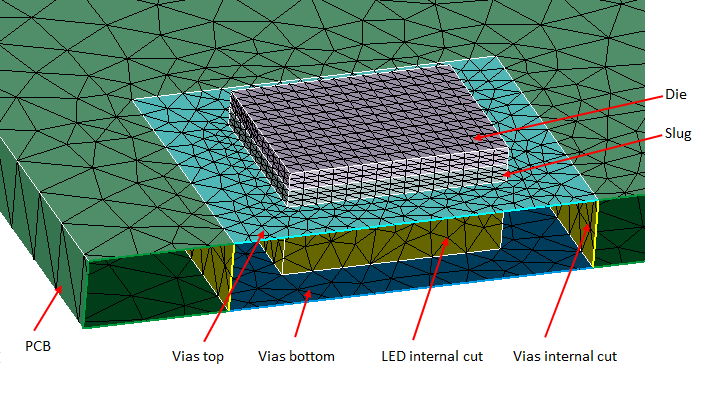

Output

Note: In case of Share with PCB or Create internal cut on PCB and if the base plane is not on PCB top face, the base plane will get aligned.
