Battery Module

Advanced > Trials > Battery Module

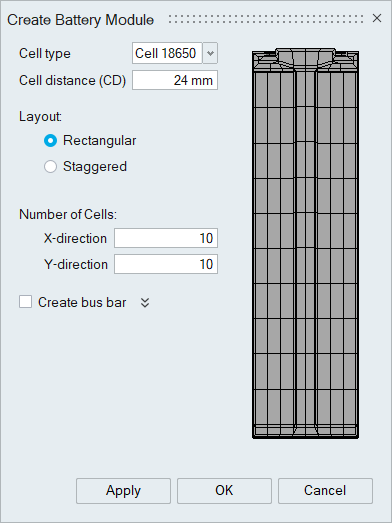

Description

This tool is used to create an array of battery cells using cell templates 18650 and 21700. The cells can be created either in rectangular or staggered patterns. Default materials and thickness properties (for sheet bodies) will be auto assigned to the respective components.

Cell type

There are two types of cell templates available.

  1. Cell 18650
  2. Cell 21700

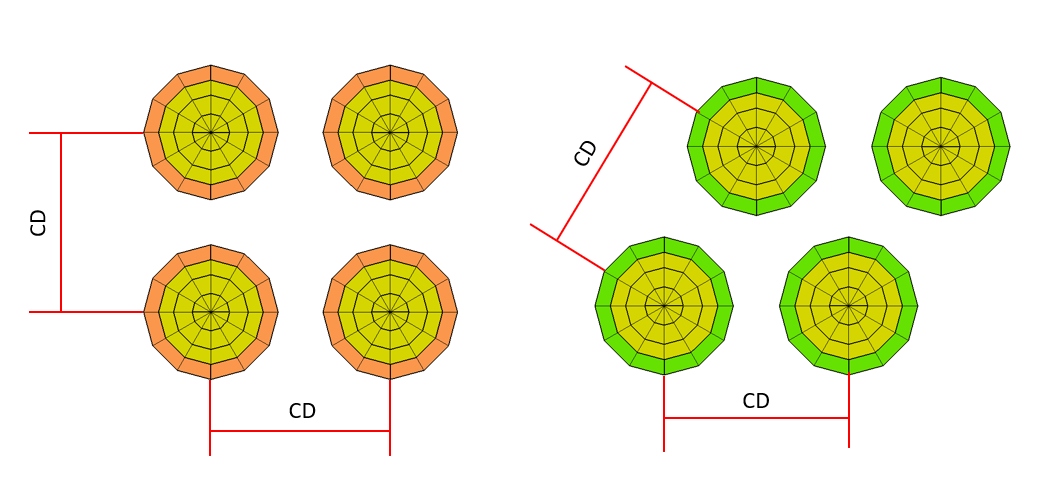

Cell distance (CD)

It is the distance between two adjacent cells.

Layout

There are two types of layouts available.

  1. Rectangular
  2. Staggered

Number of Cells

X-direction: Specify the number of cells in x-direction.

Y-direction: Specify the number of cells in y-direction.

Example

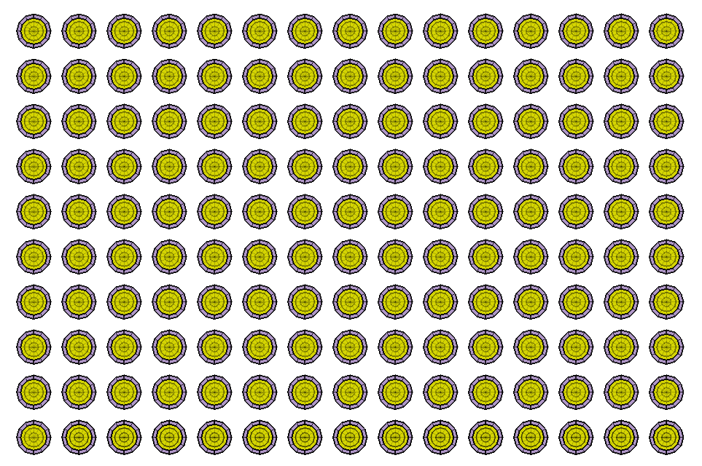

Rectangular

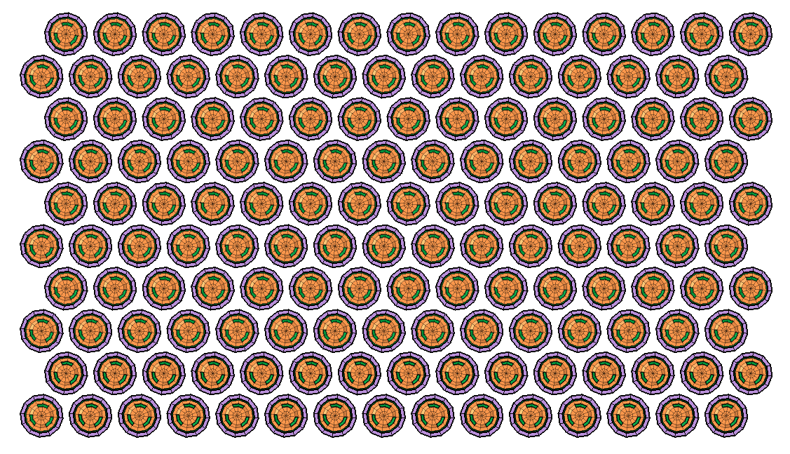

Staggered

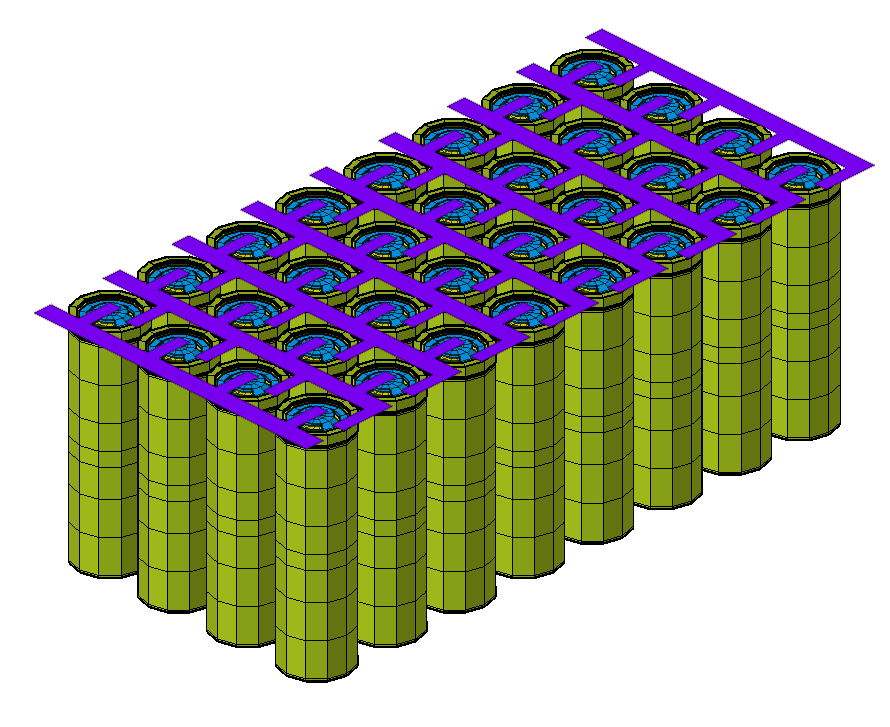

Create bus bar

Automatic bus bar creation is supported for rectangular cell layout. Cells in rows and columns are connected in series and parallel respectively.
