2D Forming

Advanced > Trials 2D Forming

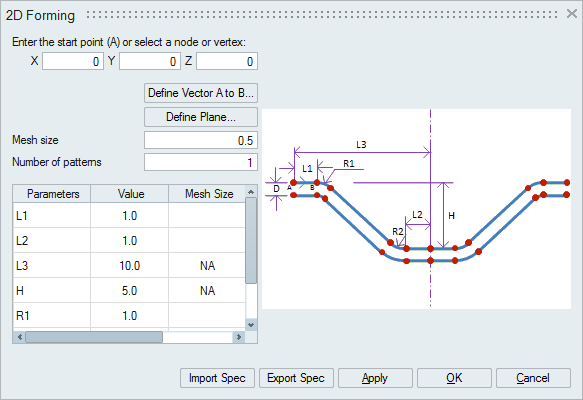

Dialog Box

This option is used to create a 2D profile based on the given parameters.

Steps to create the profile

1. Enter the start point (A) by picking a node or vertex.
2. Define a vector which starts from A to B.
3. Define the profile plane.
4. Specify the mesh size and number of patterns.
5. Input the parameters L1, L2, L3, H, R1, R2 and D
6. Click Apply to create the profile.

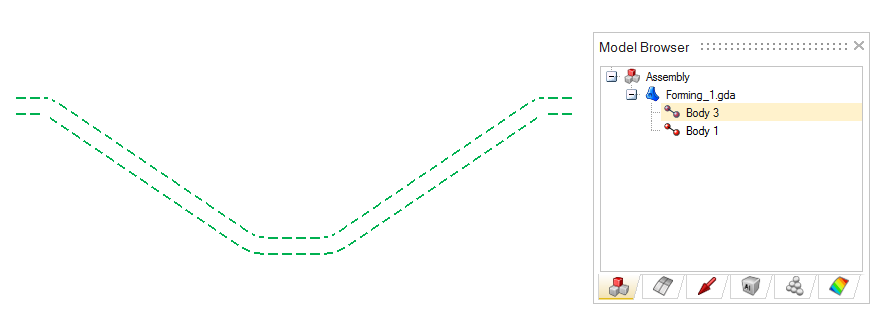

Output

Import Spec

Saved profile parameters can be imported using this toggle.

Export Spec

The profile parameters can be exported as xml format.
