Wedge Thickness
Dialog Box
This option is used to identify thickness of the extruded wedge body. It creates a contour plot using the thickness at each node.
It is useful to visually identify the height corrections done in Mesh | 3D Create | Layered Elements.
Example

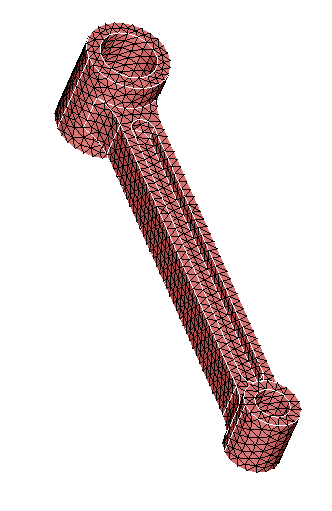

Input

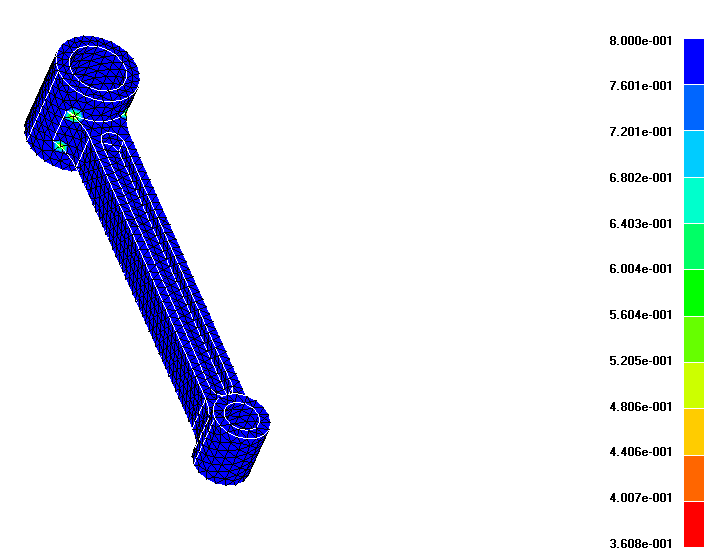

Output
