Modify a Particle Shape

You can modify a particle shape by changing the values in the table.

To modify a particle shape:

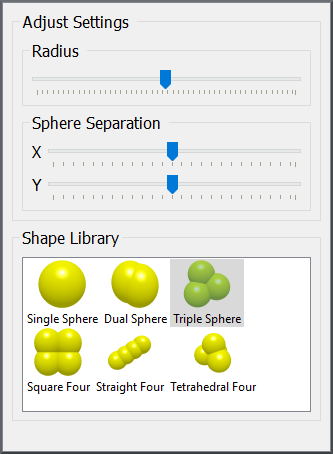

Select the particle from Shape Library dialog box and then select Modify Shape.
Set the radius, X, Y, Z position and sphere separation (in the X and Y axes) of each shape in the Adjust Settings dialog box.
