Add Sphero-Cylinder Particles

You can define a Sphero-Cylinder particle using the length and radius, where the length is the total length of the particle including the rounded ends.

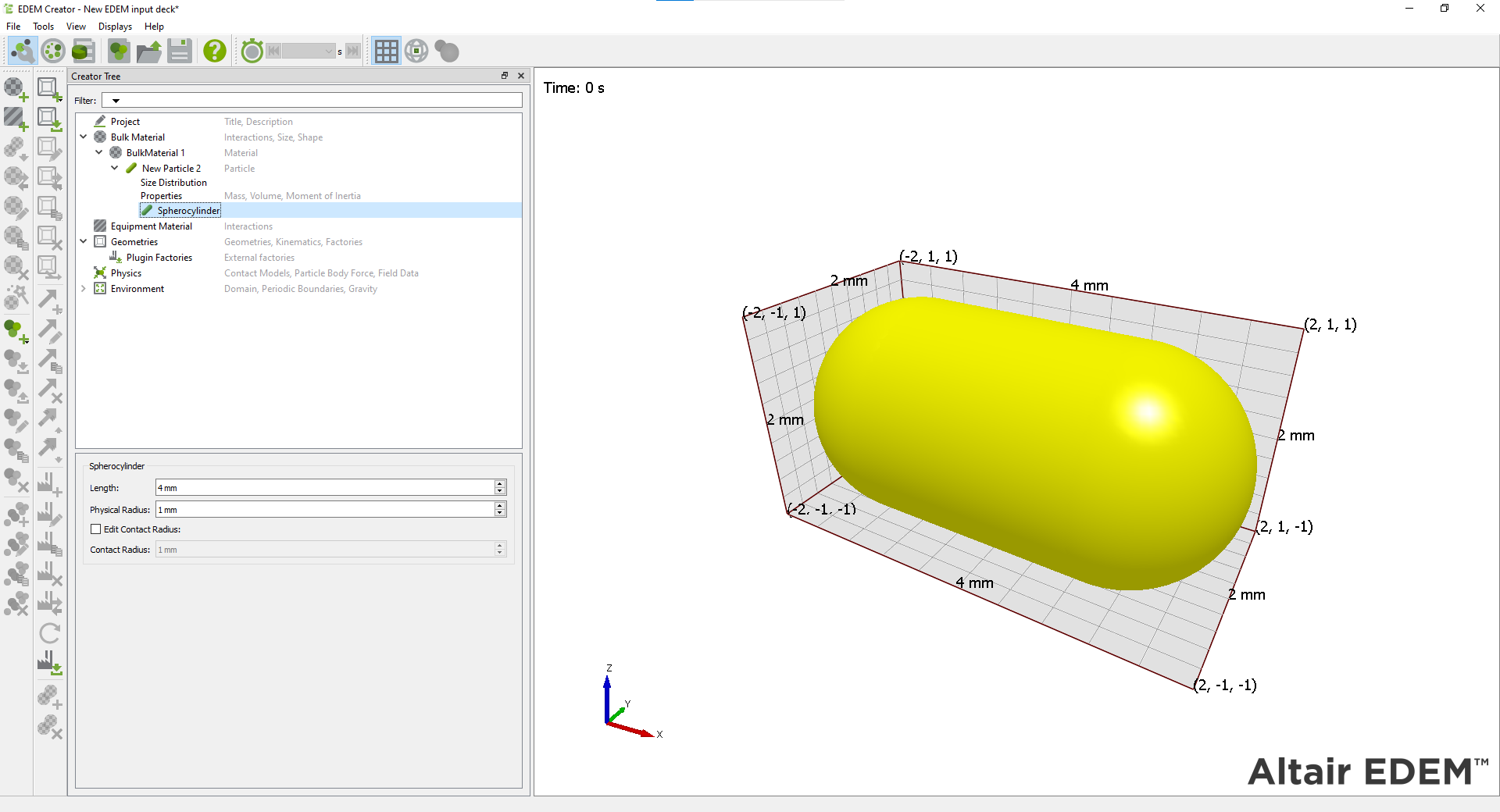

To add a Sphero-Cylinder particle:

Right-click Bulk Material, select Add Particle and then and select Add Sphero-Cylinder.

Alternatively, click the

icon.

A new particle is defined in the Creator Tree.

Note: The length is given by the total length of the particle including the rounded ends.
