EDEM Cal Utility

EDEM Cal is a utility which works with EDEM and is designed to assist in performing calibration.

The utility removes manual steps from setting up and running multiple EDEM simulations. EDEM Cal can create and submit parameter space searches automatically. EDEM Cal collates automated results from EDEM analysis and supports the use of EDEMpy scripts to obtain results, significantly reducing engineering time. EDEM Cal is a Windows-only application, but can generate a batch job for Linux.

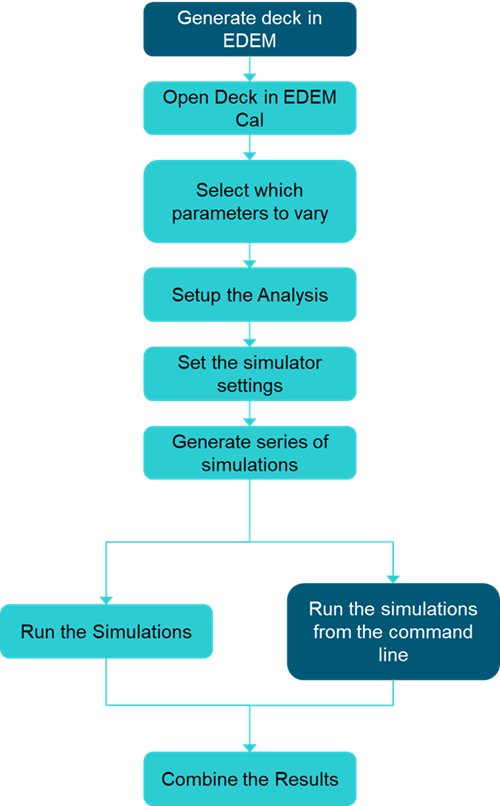

The workflow for EDEM Cal is as follows:

The EDEM Cal Interface

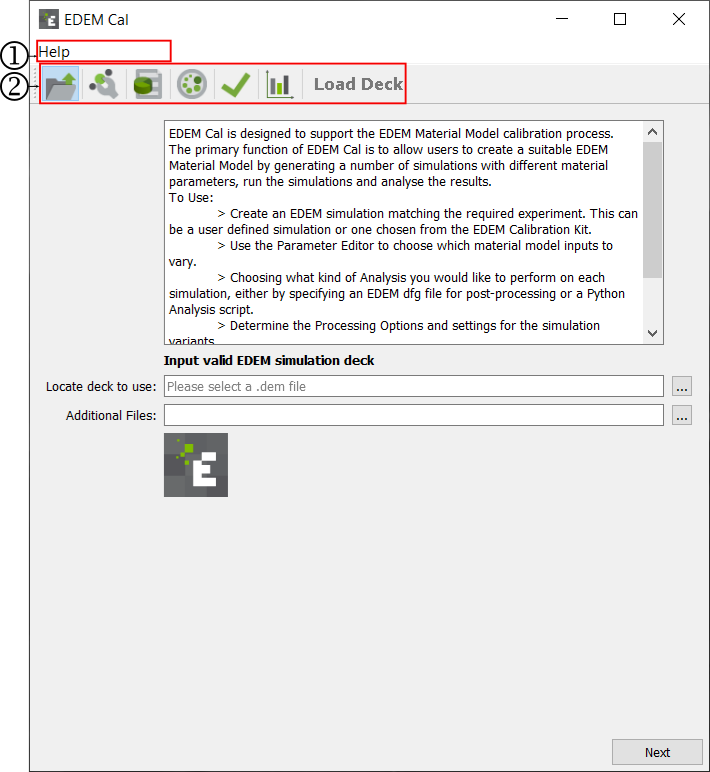

The following image represents the EDEM Cal interface with the Menu bar (1) and Toolbar (2).

The Menu bar contains the following:

Help - Shows the details of the EDEM Cal software.
The Toolbar - Comprises icons to change the User Interface to generate and execute EDEM simulations, and compile the results.


Icon	Function
	Load Deck
	Parameter Editor
	Post Processing
	Processing Options
	Submit a Job
	Results Analysis
