tripuls

Generate a sampled triangular pulse centered at zero, with a specified width and skew.

Syntax

p = tripuls(t)

p = tripuls(t, w)

p = tripuls(t, w, s)

Inputs

t
The times at which to generate the signal.
Dimension: vector
w
The pulse width. (default: 1)
Dimension: scalar
s
The pulse skew, on the interval [-1, 1]. (default: 0)
Dimension: scalar

Outputs

p
The triangular pulse.

Example

Plot a pulse of width 2 and skew 0.5, centered at t=3 on a 10 second interval, sampled at 100 Hz.

t = [0:0.01:10];
p = tripuls(t - 3, 2, 0.5);
plot(t, p);
xlabel ('Time (sec)');
ylabel ('Amplitude');

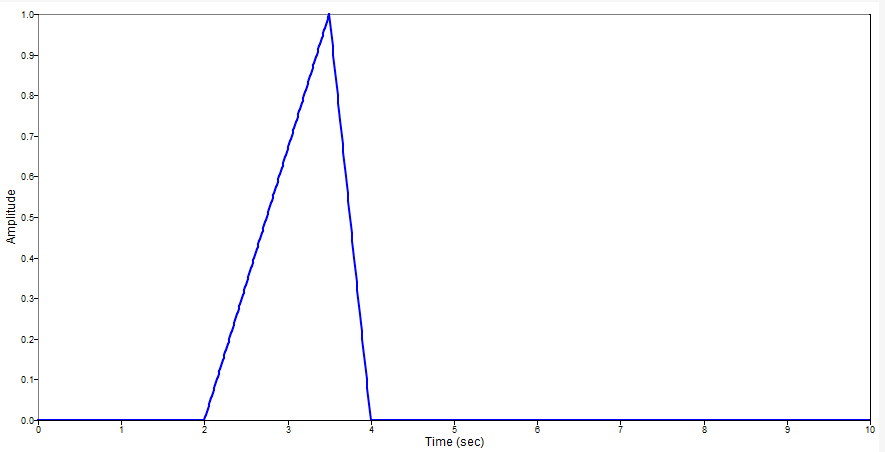

Figure 1. tripuls figure 1


Comments

tripuls is commonly used as an input to pulstran.
