Create Cell

Battery Designer > Library > Create Cell

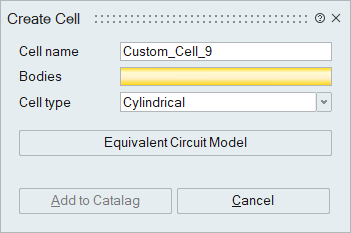

User defined cells can be created using this tool. Users can select the cell bodies and ECM circuit parameters to define a cell. Created cells are added to the ‘Usercatalogs’ section in Cell Catalog.
