showOrHideEntities
Overview
This utility is used to show (or) hide (or) isolate the given entities. It is supported for bodies, faces, edges and corresponding groups.

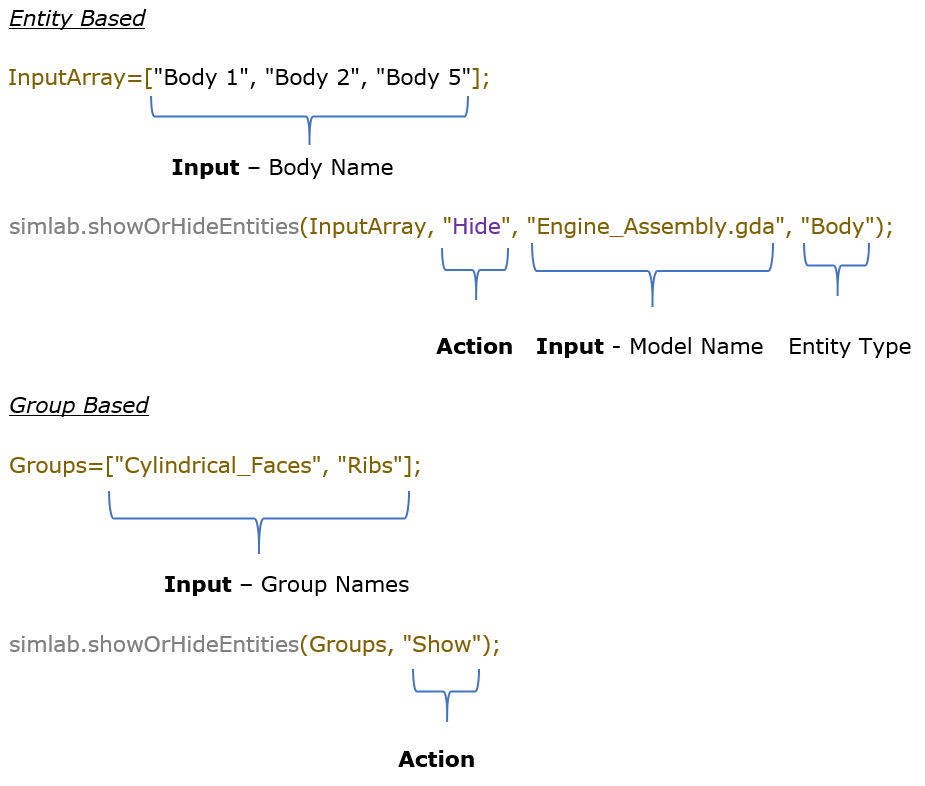

Syntax
inputEntities = []
simlab.showOrHideEntities(inputEntities, "OperationType(Show /Hide /Isolate)", "ModelName", "EntityType(Body /Face /Edge)")(or)
Groups = []
simlab.showOrHideEntities(Groups, "OperationType(Show /Hide /Isolate)")Utility Input/output
Note: The show option is not functioning for face inputs.
Isolate is not working for group inputs.
