setSelectionFilter

Overview

This utility is used to set the selection filter in GUI based on the given filter type.

Syntax

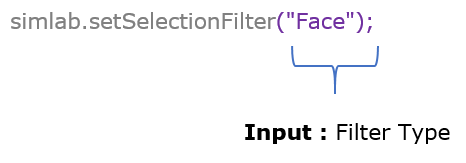

simlab.setSelectionFilter("FilterType")

where

• FilterType = Vertex; to set vertex filter
• FilterType = Edge; to set edge filter
• FilterType = CircleEdge; to set circle filter
• FilterType = EdgePath; to set edge path filter
• FilterType = FreeEdgeLoop; to set free edge loop filter
• FilterType = EdgeLoop; to set edge loop filter
• FilterType = Face; to set face filter
• FilterType = CylinderFace; to set cylinder filter
• FilterType = FilletFace; to set fillet filter
• FilterType = Body; to set body filter
• FilterType = RBEBody; to set RBE body filter
• FilterType = Node; to set node filter
• FilterType = RBENode; to set RBE node filter
• FilterType = ElementEdge; to set element edge filter
• FilterType = BarElement; to set bar filter
• FilterType = Element; to set shell elementfilter
• FilterType = SolidElement; to set solid element filter
• FilterType = Load; to set loads filter
• FilterType = RBE; to set RBE filter
• FilterType = Coordinate; to set coordinates filter
• FilterType = RBar; to set RBAR filter

Use Case

To set the selection filter for the line edit for the custom dialogs which is created using python scripts.

Utility Input/output
