setVisibilityMode

Overview

This utility is used to control the visibility options like CAD Model, FEM Model, Loads and Results, etc.

Syntax

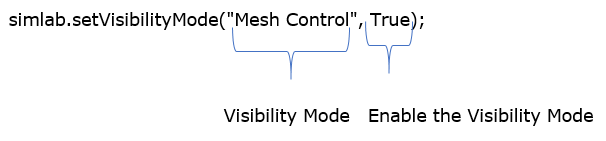

simlab.setVisibilityMode("Visibility Mode", "State")

Visibility Mode: Load / Mesh Control / Results / CAD Model / FEM Model

State: True (To Enable) / False (To Disable)

Use Case

To take a snapshot of the model with various visibility modes.

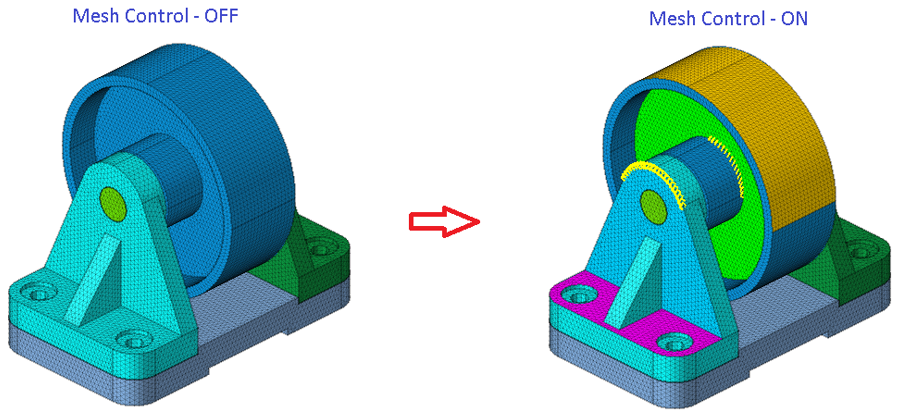

Utility Input/output

Sample

Note: Sample Script
