setPickingFilter

Overview

This utility is used to set the picking filter in GUI based on the given filter type.

Syntax

simlab.setPickingFilter(“FilterType”)
where
  • FilterType = Single; to set single picking
  • FilterType = Polygon; to set polygon picking
  • FilterType = Intersection; to set intersection picking
  • FilterType = Deselect; to set deselect picking
  • FilterType = Enclosed; to set enclosed picking
  • FilterType = Visible; to set visible picking
  • FilterType = Transparency; to set transparency picking

Use Case

To set the picking filter for selecting the visible entities to do some operation from scripts.

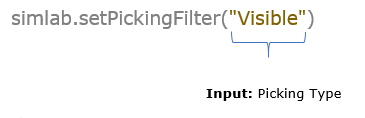

Utility Input/output

Note: Sample Script
