3D Magnetostatic Solution

Solution for a 3D Magnetostatic simulation.

Solutions > Physics > Electromagnetics > Magneto Static

Introduction

When opening SimLab, the default selected menu is Solutions:

The first thing to do is to create the Electromagnetic solution and more precisely the 3D Magnetostatic solution.

Note: For more details on Solution in SimLab, please refer to the Solution.

To have more details about the creation of the solution Magneto Static 3D, please refer to Magneto Static solution.

Attention: With this SimLab version, it is mandatory to define a global unit system before creating a Magnetostatic 3D Solution. Without a global unit system, the solving will not be carried out (limitation in the Flux solver).

The global unit system is enabled by default.

To define the global unit system:

  1. activate
  2. choose the wanted system

For more details on Unit System, please refer to the main page Unit System.

Steps

In order to create the 3D Magnetostatic solution, please follow the steps below:
  1. Define the unit system
  2. Click on the Electromagnetics button:

    → a second ribbon appears

  3. Click on Magneto Static button:

  4. The Create Solution window opens:

    1. In the Name field: enter a name for this solution.
      Note: The name should contain only alphanumeric characters or the underscore _ or a space.
    2. In the Solver field: select Flux solver.
    3. In the Solution type field: select Magnetostatics.
    4. In the Domain Parameters area:

      in the Domain field: select 3D.

    5. Click on the OK button.

      The 3D Magnetostatic solution is created.

      To the left of the graphic window, in the Model Browser, in the 2nd tab Solutions, the MagnetoStatic3D entity is created:

      • Next to Mesh, there is an empty set Ø meaning that the meshed bodies are not yet assigned to the solution. This step will be done later at the step Edit Solution after the meshing stages.
      • In Loads and Constraints, there will be the entities defining the physics of the active 3D Magnetostatic solution.

Advices

  • In the same project, it is possible to create several solutions.

    The active solution is the one in bold in the Model Browser (to the left of the graphic window), in the 2nd tab Solutions.

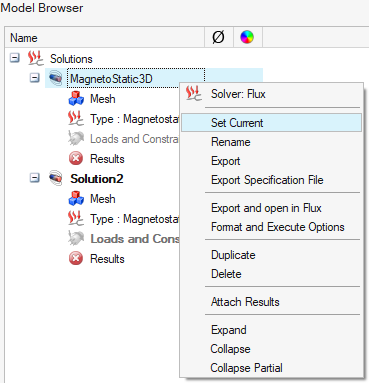

    Tip: In order to choose the solution to work on: right-click on the solution and select the contextual menu Set Current.

    Within the same project, having several solutions, allows you to:
    • do multiphysics (with coupling)
      Note: There is no multiphysics with a 3D Magnetostatic solution.
    • simulate several projects in parallel (with no coupling)

    The interest is that the geometry and the mesh are created only once, there is no need to redo the geometry and the mesh.

  • It is possible to Export and open in Flux at any time, as long as the bodies are meshed and assigned to the solution.

    Use the right click on the Solution to open the contextual menu, and click on Export and open in Flux.

    → The SimLab Database *.slb is converted into a project *.FLU.

    → This project *.FLU is created in the selected working directory and Flux is automatically launched and this project *.FLU is opened.

    → Then you can use this project in Flux.
