Surface Mesh
Introduction

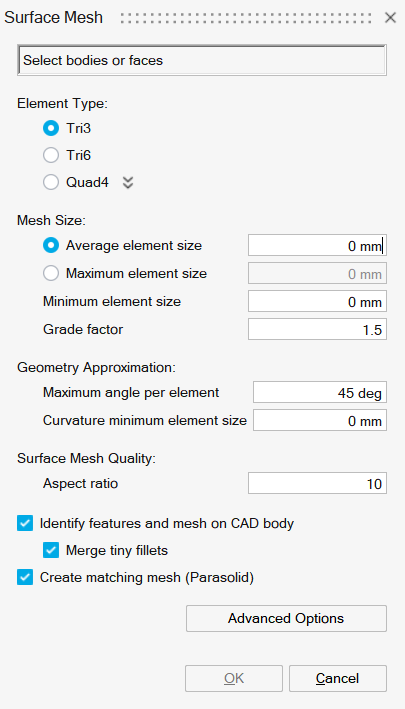

Global parameters to mesh surfaces of a body with 2D elements (TRI/QUAD) is specified using the Surface Mesh dialog box. The 2D element types supported are:
- Tri3
- Tri6
- Quad4
For more information on Surface Mesh, please refer to Surface Mesh.
