Crankshaft: Position RBE Nodes
Description

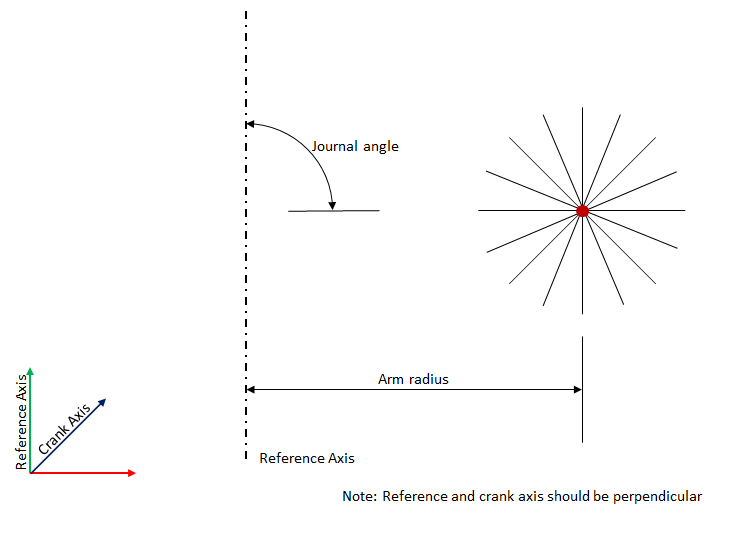

The position RBE nodes tool is used to position the center node of the RBEs with the specified arm radius and the journal angle with respect to the reference axis.
Arm radius:
It is the distance between the center node of RBE and the crank axis.
Journal angle:
It is the angle between the crank axis and the reference axis.
Example
Input

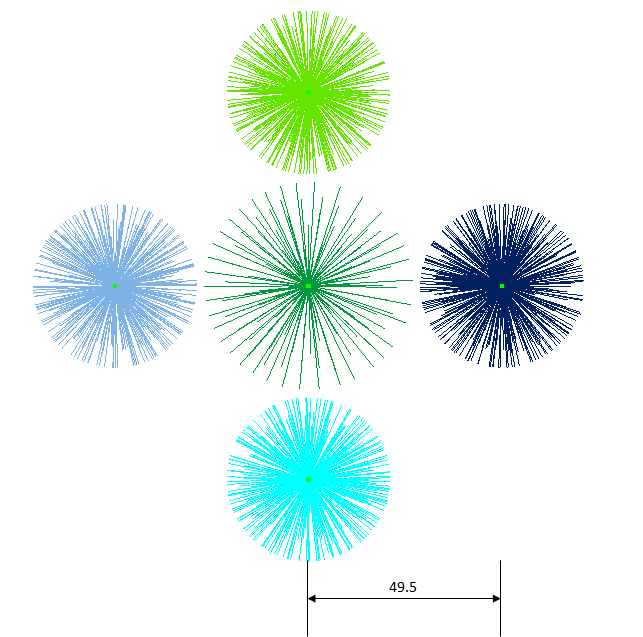

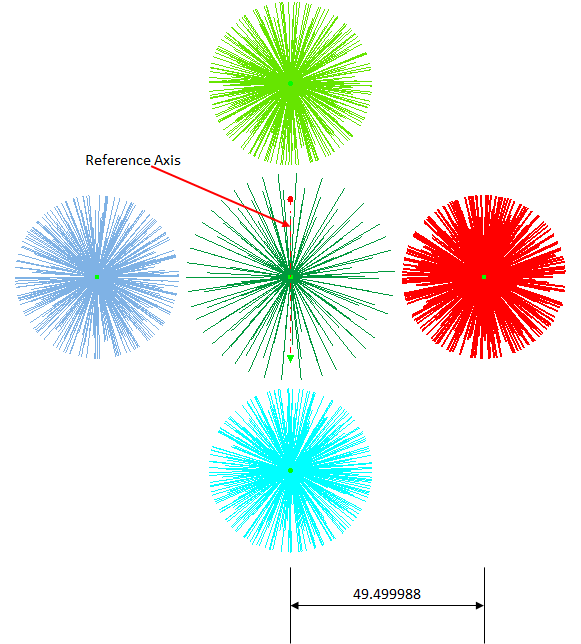

Output
