Crankshaft: Number RBEs

Advanced > Crank Train > Number RBEs

Description

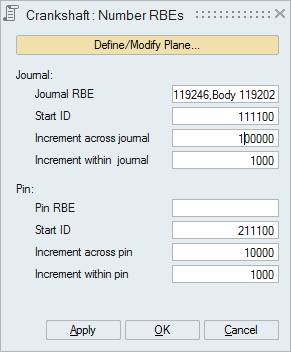

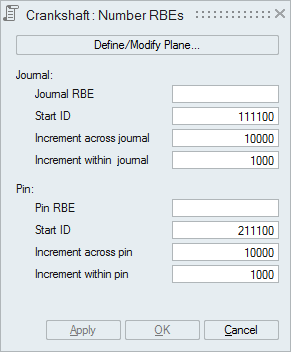

This option is used to renumber the RBE elements and their center nodes.

This reference plane is used to arrange the journals and pins RBE elements. The renumber will start from the journal and pin that is closer to plane.

Journal

• Start ID: The ID from which the renumbering has to be started can be specified here.
• Increment across journal: Difference in increment between the two adjacent journals.
• Increment within journal: Difference in increment between two adjacent RBE's within single journal.

Pin

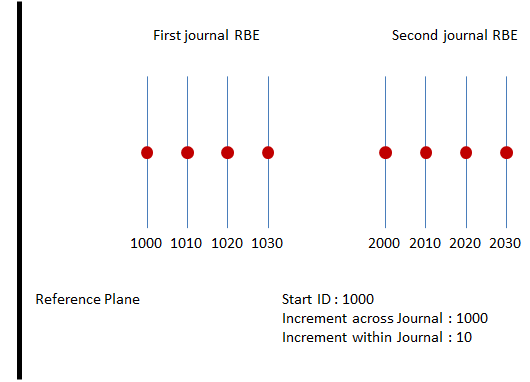

Example

Output
