Add an Hydromechanical Draw Operation

Simulate a top binder holding the blank of a model while the top die deforms the blank against fluid in the bottom cavity to create the desired shape.

The default tools associated with Hydromechanical draw include a top die, bottom cavity, fluid, and top binder.

From the Tryout ribbon, click the Add operation icon.
From the Add Operation window that appears, select Hydromech.

An Hydromech operation is added to the Tryout ribbon.
Click the Hydromech operation.
The default tools are displayed.

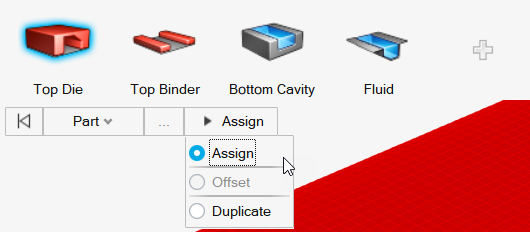

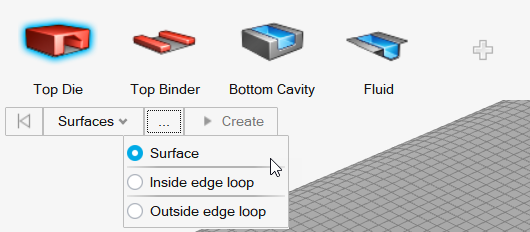

Configure the tools for the Hydromechanical draw.
