Add a Flexform Operation
Simulate a top binder holding the blank of a model while fluid in a rubber membrane deforms the blank against the bottom die.
-
From the Tryout ribbon, click the Add
operation icon.
-
From the Add Operation window, select Flexform.
The Flexform draw operation is added to the Tryout ribbon. -
Click the Flexform draw operation.
The default tools are displayed.
-

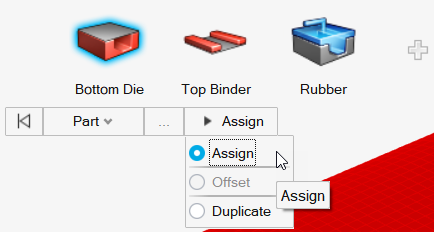

Configure the bottom die for the Flexform draw.

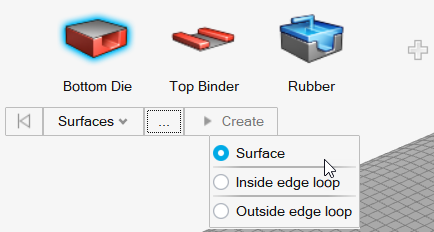

Tip: When working with surfaces, you can quickly select surfaces inside or outside an edge loop. When Inside edge loop or Outside edge loop is selected, clicking Create automatically selects the surface inside or outside the red loop indicator, significantly reducing model setup time. -

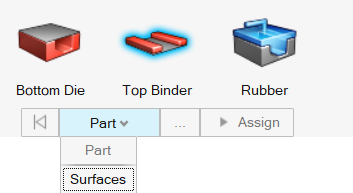

Configure the top binder for the Flexform draw.
-

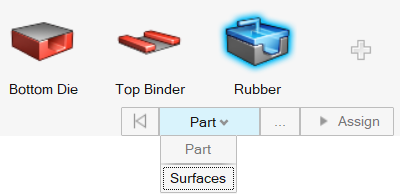

Configure the rubber for the Flexform draw.
