Iso Surface

Note: This tool is supported only for Flow Post-Processing Display.

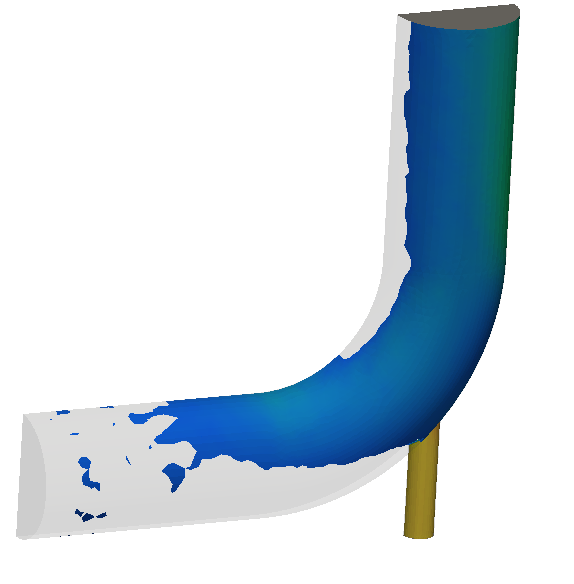

Use the Iso-Surfaces tool to create a derived geometry surface with a specific constant scalar value and define display properties. The shape of the iso-surface is dependent on domains and flow fields.

From the results ribbon, click the Iso Surface tool.

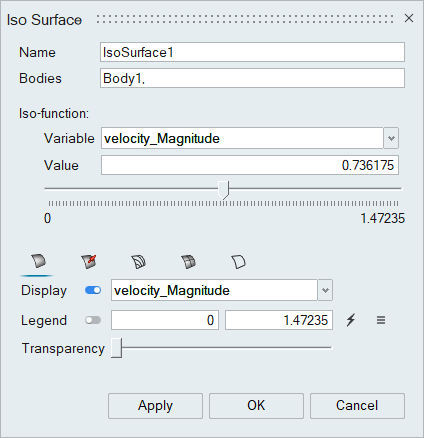

Select the input bodies to create iso-surfaces. By default, all the bodies are selected.

Select the iso variable and define a value.

Use the icon tabs in the display properties to define plot contour data, vectors, contour lines, mesh lines, and feature lines. The changes are reflected only in the current tab.

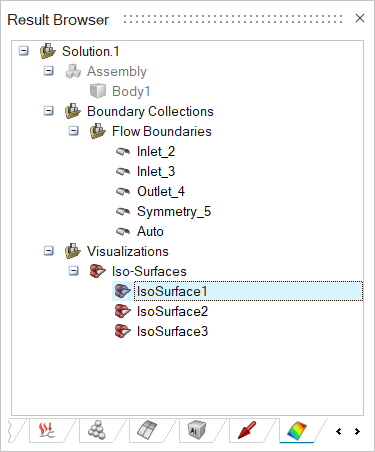

To edit the iso-surface definition and display style, double-click on an iso-surface in the Post Browser.
