Boundary Groups

Use the Boundary Groups tool to create a group of surfaces and define display properties. These surface groups can be utilized to group boundaries as required and define specific display properties.

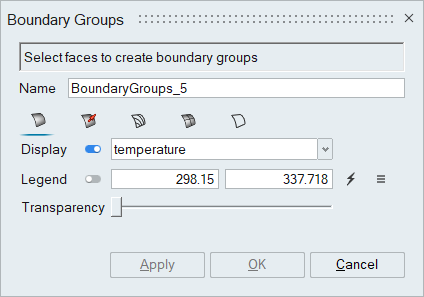

1. From the results ribbon, click the Boundary Groups tool.



2. Select surfaces from the graphics window to create new boundary groups. We can modify the created boundary groups by double click from the results browser.
3. Use the tabs in the display properties to define plot contour data, vectors, contour lines, mesh lines, and feature lines. The changes are reflected only in the current tab.
