Result request for EM solutions

Analysis > Options > Solution Settings > Result Request

Introduction

The Result Request function has been added for Electro Magnetic solutions:

Magneto static 2D (MS2D)
Magneto static 3D (MS3D)
Magneto static integral 3D (MSIM)
Transient Magnetic 2D (MT2D)
Transient Magnetic 3D (MT2D)
Magnetic AC 2D (MAC2D)
Magnetic AC 3D (MAC3D)
Parasitics Extraction (PE)
Supplied Conductors AC (SCAC)

Note: No Result Request for Electrostatics solution.

The Result Request allows the user to select the list of global quantities that he wants to postprocess in function of another parameter (position, time…).

Note: Result Request entity exists by default in the solution. Some quantities are checked by default. It is possible to change the quantities to post process by clicking on the Result Request button or by editing the existing entity in the solution datatree (in Settings).

Dialog box

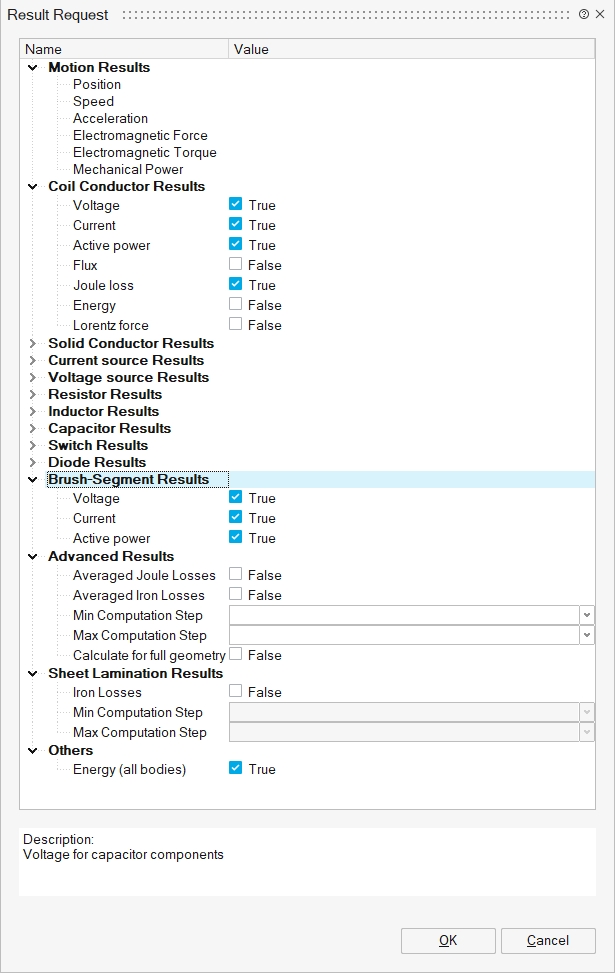

For instance, the dialog box of a MT3D solution is presented below.

List of Result Request for EM Solutions

By default, the predefined quantities of the motion are displayed (and cannot be modified), and the user has the choice to add or remove the other quantities. The list of these proposed quantities is in this dedicated GUI and depends on the studied solution (MS2D, MS3D, MT2D...).


Category	Global quantities	SimLab Solution
Category	Global quantities	MS2D	MS3D	MSIM	MT2D	MT3D	MAC2D	MAC3D	SCAC
Motion	Position
	Speed
	Acceleration
	Electromagnetic Force
	Electromagnetic Torque
	Mechanical power
Coil Conductor	Voltage
	Current
	Active power
	Reactive power
	Flux
	Joule loss
	Energy
	Lorentz force
Solid Conductor	Voltage								^**
	Current								^**
	Active power
	Reactive power
	Joule loss								^**
Current and Voltage sources	Voltage								^**
	Current								^**
	Active power
	Reactive power
Resistance Inductor Capacitor	Voltage								^**
	Current								^**
	Active power
	Reactive power
Switch	Voltage
	Current
	Active power
Diode	Voltage
	Current
	Active power
Brush-Segment	Voltage
	Current
	Active power
Squirrel Cage	Voltage
	Current
	Active power
	Reactive power
	Joule loss
Advanced Results	Joule Losses ( Averaged Joule Losses)*				*	*
	Iron Losses ( Averaged Iron Losses)*				*	*
	Min Computation Step Max computation Step
	Position step
	Number of layers in extrude direction
	Calculate for full geometry
Sheet Lamination	Iron Losses
Sheet Lamination	Min Computation Step Max computation Step
Thin Region	Joule loss								^**
Others	Energy (all bodies)
RMS or Max for Voltage, Current and Flux

Note: ^** For SCAC solution, there are no circuit information in the Result request dialog box, but some results are automatically computed and available for the postprocessing after to solve:

Current and Voltage for available components ( Current and Voltage Sources, Resistor, Inductor, Capacitor, Solid Conductor)
Joule losses for Solid Conductor component and Thin Region

List of Result Request for Parasitics Extraction solution


Result request		SimLab Solution
Result request		PE
S-Parameter Computation	Active Ports (All or Custom)
Touchstone Export	Create and Export a Touchstone File
	Frequency Unit
	Network Parameter Type
	Network Parameter Format
SPICE Export	Export in SPICE Format

Note: More details about Result Request for Parasitics Extraction solution at this following link: Result Request for PE.

List of Result Request for Supplied Conductors AC solution


Result request		SimLab Solution
Result request		SCAC
Global Computation	Joule loss
RMS or Max for Voltage, Current and Flux
Laplace Force computation

Note: More details about Result Request for Supplied Conductor AC solution at this following link: Result Request for SCAC.

Advanced Results

The Result Request Advanced Results is deactivated by default.

However, user can define it if required.

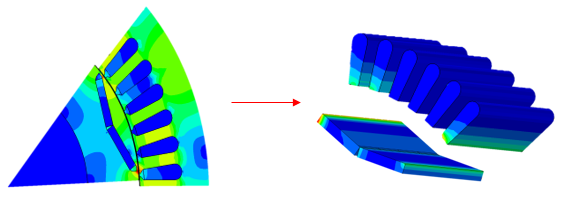

this result request is used for computation of coil and magnet losses and to export them in H3D format.
This can be useful when trying to couple the transient magnetic solution to a CFD computation.
With the help of the H3D files the losses can be directly mapped to the FLOW solution, when they will be used as heat source loads.
Options are given for extrusion and building or not the full geometry considering the periodicity.

Sheet lamination results

The Result Request Sheet lamination results is deactivated by default.

However, user can define it if required.

This result request is used in combination with the sheet lamination LBC.
User has set it to TRUE for computation of iron loss results.
In addition, user needs to select the Min and Max computation steps.
For accurate computation of the iron loss results user needs to select the steps that comprise one electrical period (excluding the two first steps of the solution).

RMS/Max for Voltage, Current and Flux Results

The RMS/Max option allows to select the type of output for curve, EM Response and contour/vector results.

If RMS is selected:
The Current, Voltage and Magnetic Flux for all components will be in RMS format and will be named Current_Module_RMS_<Component Name>, Voltage_Module_RMS_<Component Name> and Flux_Module_RMS_<Component Name> respectively.
The contour/vector results for J and B quantities will be in RMS values as well.
If Max is selected:
The Current, Voltage and Magnetic Flux for all components will be in Max format and will be named Current_Module_Max_<Component Name>, Voltage_Module_Max_<Component Name> and Flux_Module_Max_<Component Name> respectively.
The contour/vector results for J and B quantities will be in Max values as well.

Note: The Joule losses will remain the same for both RMS and Max cases. They are computed using the RMS value of the current.
