Apply a Template to a Plot

Change the plotting parameters while viewing the plotted results by switching to a different template.

On the Results, the plot viewer pane, you can view your templates in a drop down list to select directly and view the corresponding plot result. If the selected template is valid, a new plot result for the same result file is displayed and if the template is invalid you will see a message to select a different template.

You can apply different templates to the plot for the running jobs and completed job result files.

  1. On the Results viewer pane, have your plot result displayed.
    The drop down list is displaying the chosen template name for the current plot.

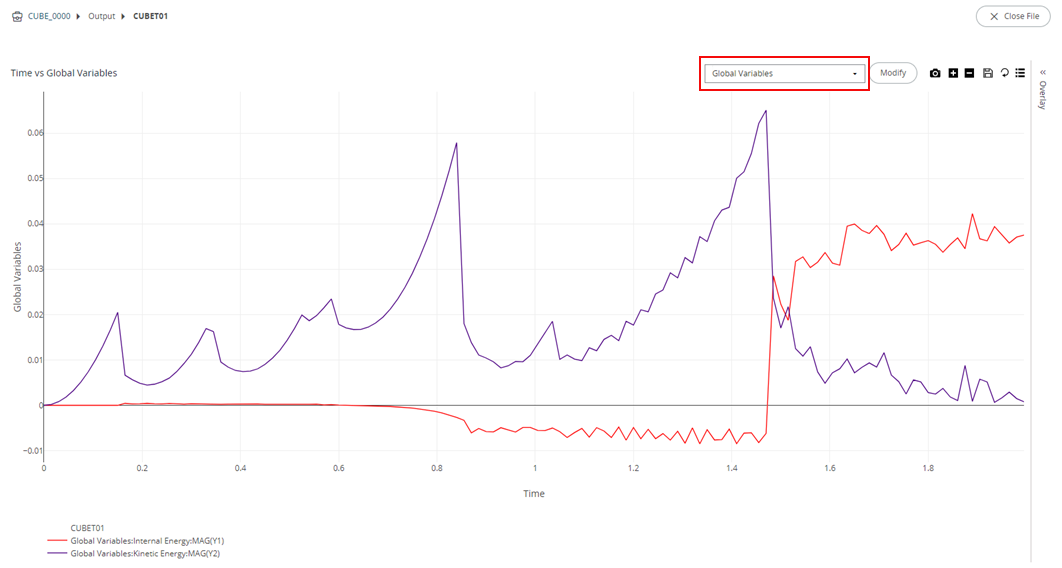

    Figure 1. Selected Template Name

    Template Name
  2. Select a suitable template from the Template drop down list
    A new plot result is displayed with the new template plotting parameters for the same result file.

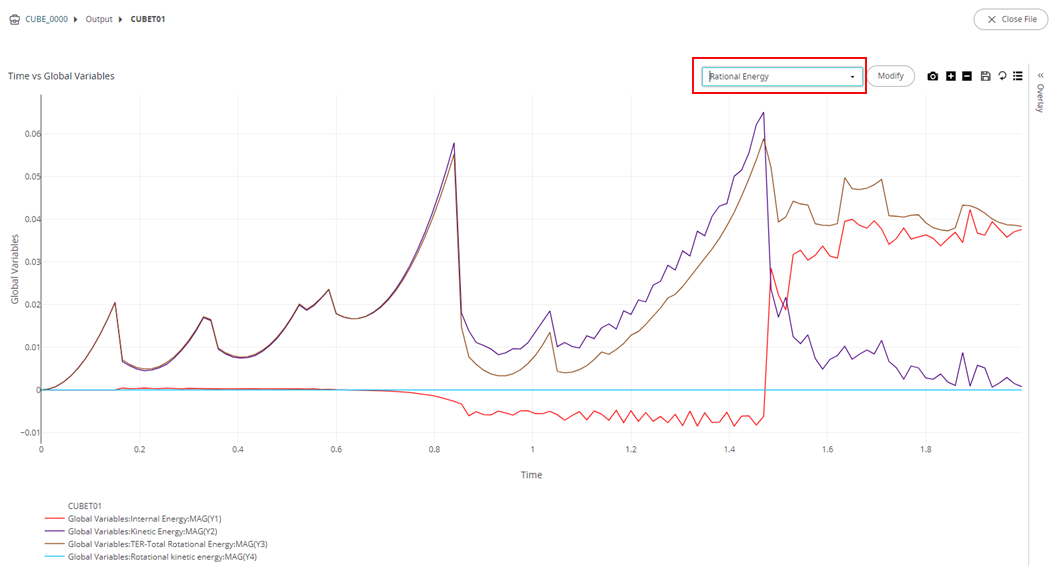

    Figure 2. Plot Result based on the Template

    Plot Result based on the Template
    Tip: Click to return to the plot TOC to modify the plot parameters.
