Duplicate a Plot Template

Duplicate a plot template to add and modify the plot parameters of a template.

Note: You cannot duplicate an invalid plot template.

Click of a template.
Click Duplicate from the context menu.

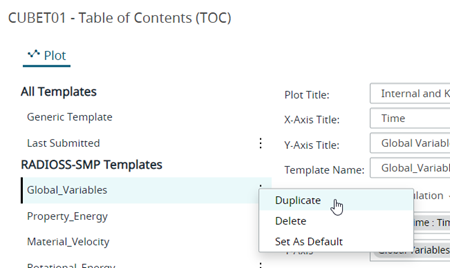

Figure 1. Duplicate Plot Template

As a copy of the template is created with a suffix -copy attached to the template name that you duplicated.
