Delete a Plot Template

Remove a plot template that is no longer needed.

Generic Template displays the selected arguments for the selected plot result file and it cannot be deleted.

Click of a template.
Click Delete from the context menu.

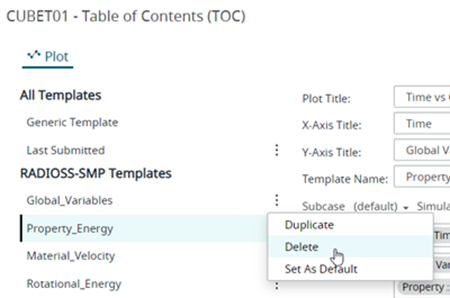

Figure 1. Delete Plot Template

The selected template is removed from the Template list.
