View Plot Results by Log X and Y

You can use the Log X and Log Y options to change the X and Y axis to logarithmic scale.

You can view the plot parameters based on Log X and Log Y.
Note: You can also select Log X and Y together to view the plot changes.
  1. Click > Log X.
    The plot view is displayed with the X axis logarithmic scale.

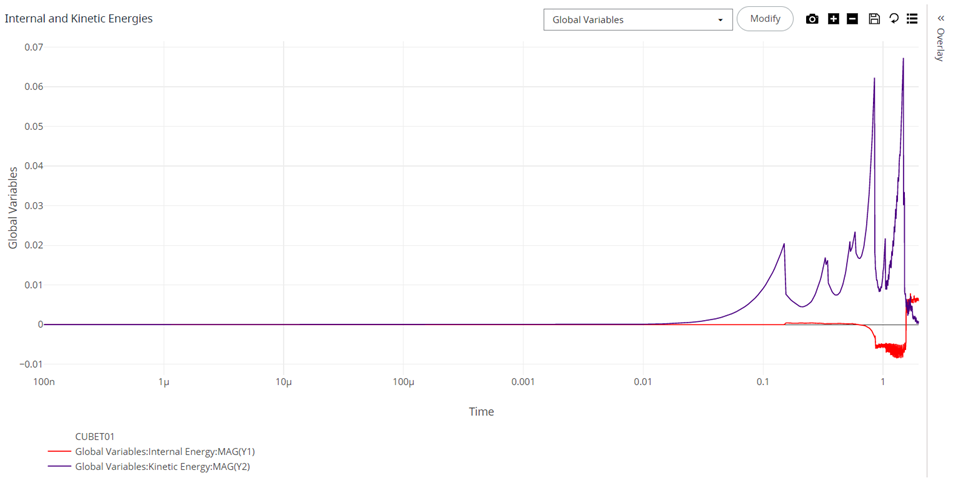

    Figure 1. A Plot View with Log X

    A Plot View with Log X
  2. Click > Log Y.
    The plot view is displayed with the Y axis logarithmic scale.

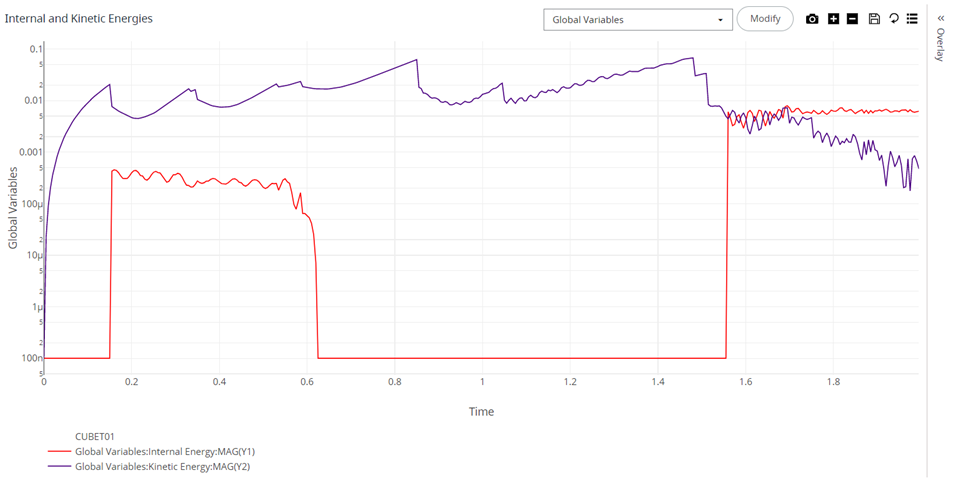

    Figure 2. A Plot View with Log Y

    A Plot View with Log Y
