View Default Plot Result

View plot result with the default plot template.

If a default template is set for a result file then RVS will display the plot result directly. If the set default template doesn't match the result file, the plot TOC is displayed with a message to select another valid template.
  1. Right-click a plot file and then click Open With > Plot TOC.
    The plot result is displayed.

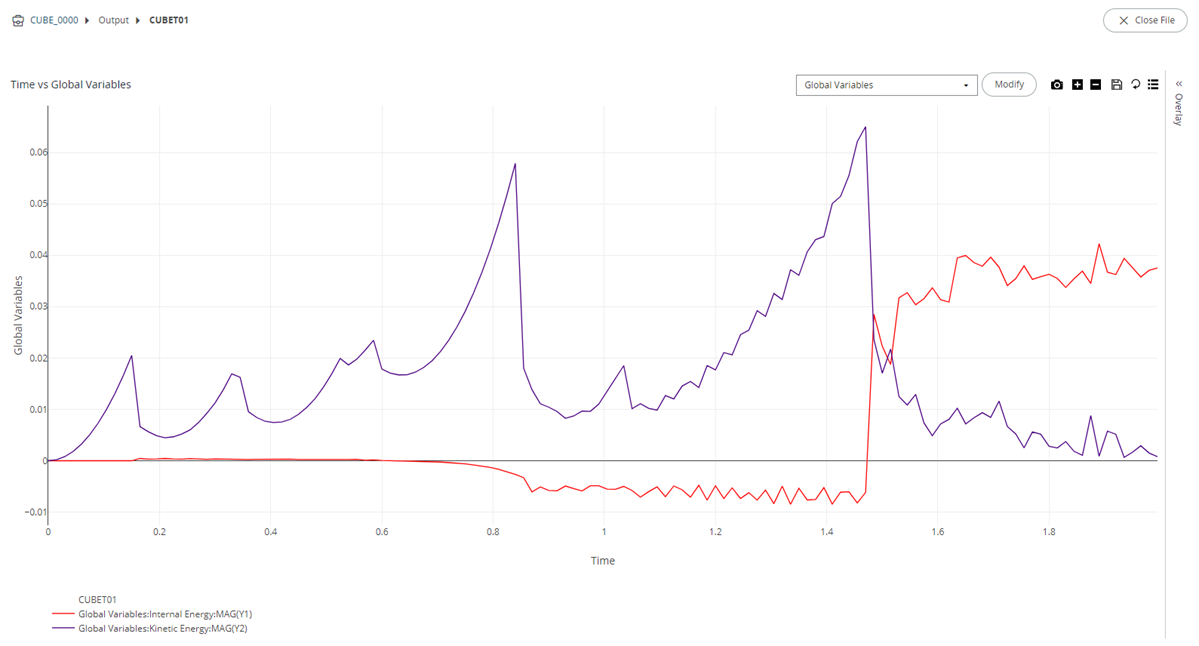

    Figure 1. Plot Result

    Plot Result
    The default template plot result is displayed.
    Tip: Click to return to the TOC pop-up screen to modify the plot parameters.
  2. Click the Template drop-down list to view the applied default template.

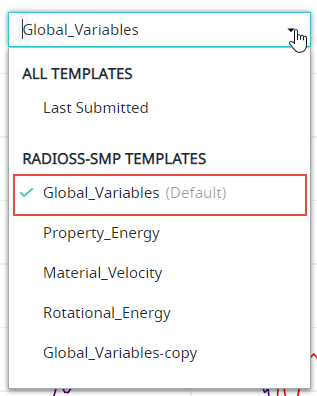

    Figure 2. Template drop-down list

    Template drop-down list
